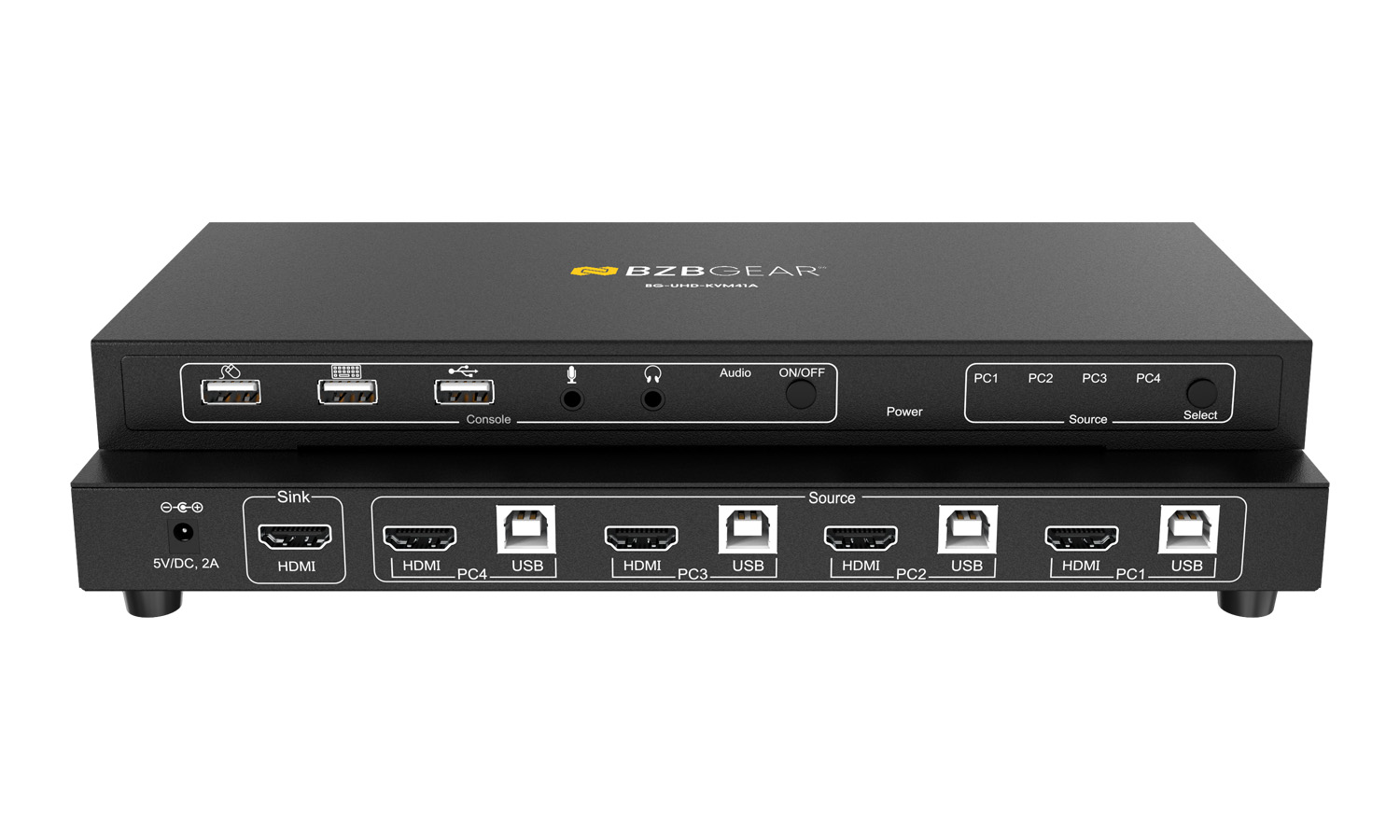

BZBGEAR BG-UHD-KVM41A 4X1 KVM Switch with USB2.0 Ports for Peripherals and 3.5mm Jacks for Audio Support

BZBGEAR
Authorized Dealer
SKU: BG-UHD-KVM41A

Product Questions? Ask Our Experts!
  • $249.00
  • Brand
    BZBGEAR
  • SKU
    BG-UHD-KVM41A
  • Weight
    2.00 lbs
  • Warranty
    3 Years
  • Condition
    New
  • Status
    In Stock


BZBGEAR BG-UHD-KVM41A 4X1 KVM Switch with USB2.0 Ports for Peripherals and 3.5mm Jacks for Audio Support

Warranty! Call Us 888 660 2962
  • Weight
    2 lbs
  • SKU
    BG-UHD-KVM41A
  • Mnf#/Vendor#
    BZBGEAR
The BG-UHD-KVM41A is a 4K HDMI USB 2.0 KVM switch. With support for resolutions up to 4K @ 30Hz, this device allows users to control four computers and share USB peripherals from a single workstation.

The BG-UHD-KVM41A is a 4K HDMI USB 2.0 KVM switch. With support for resolutions up to 4K @ 30Hz, this device allows users to control four computers and share USB peripherals from a single workstation. Perfect for offices, software programmers, and technical support desks, users can easily switch between multiple operating systems without leaving their seat.

Connectivity and Features

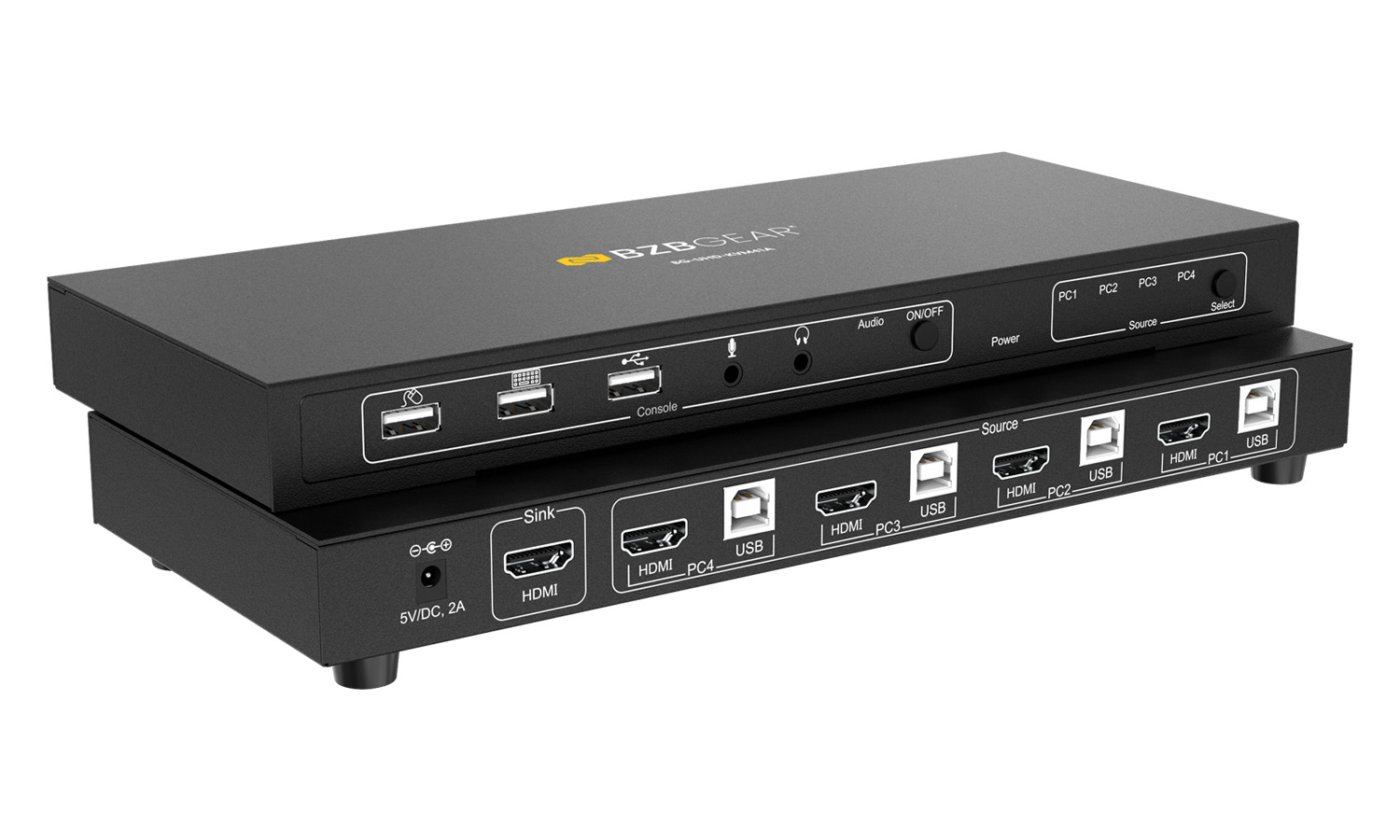

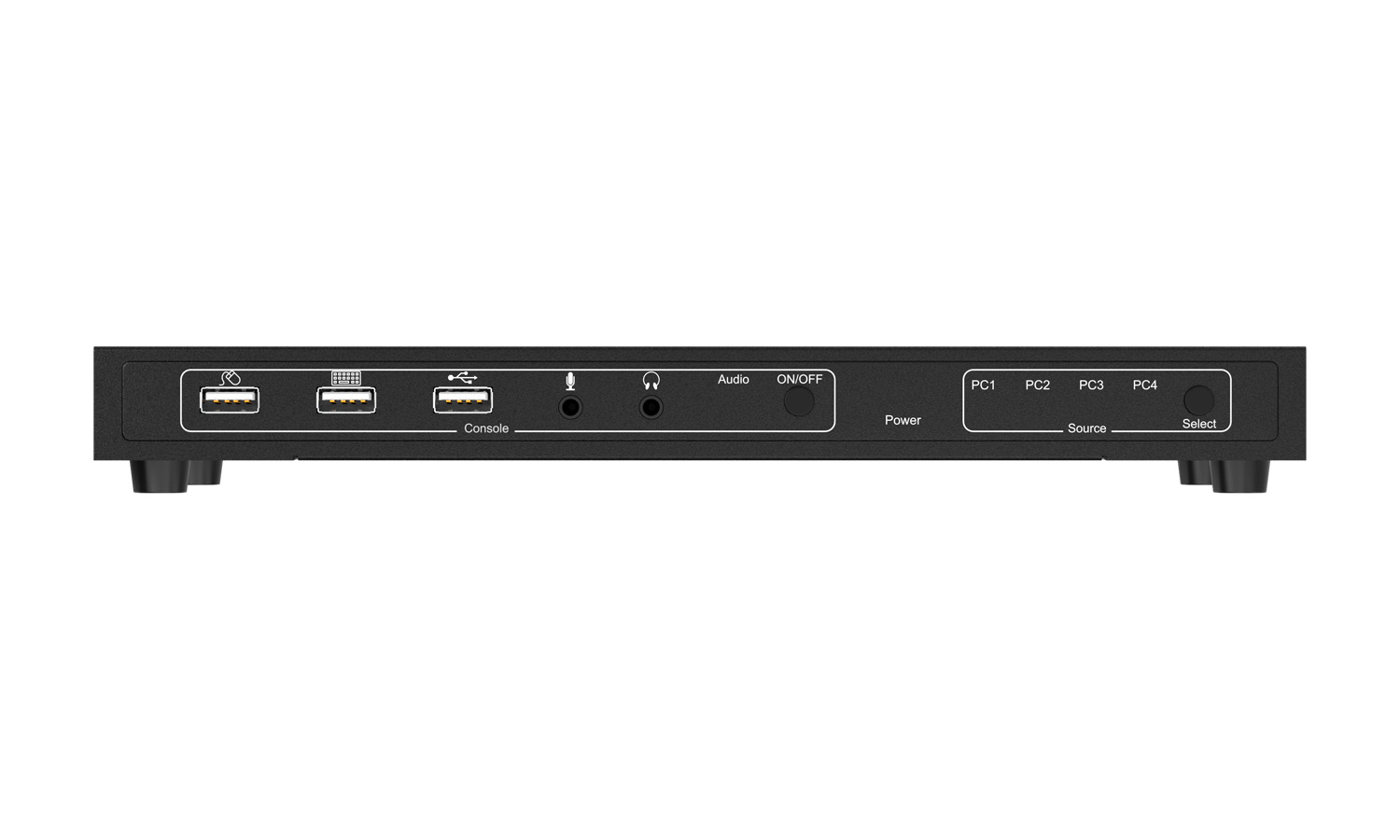

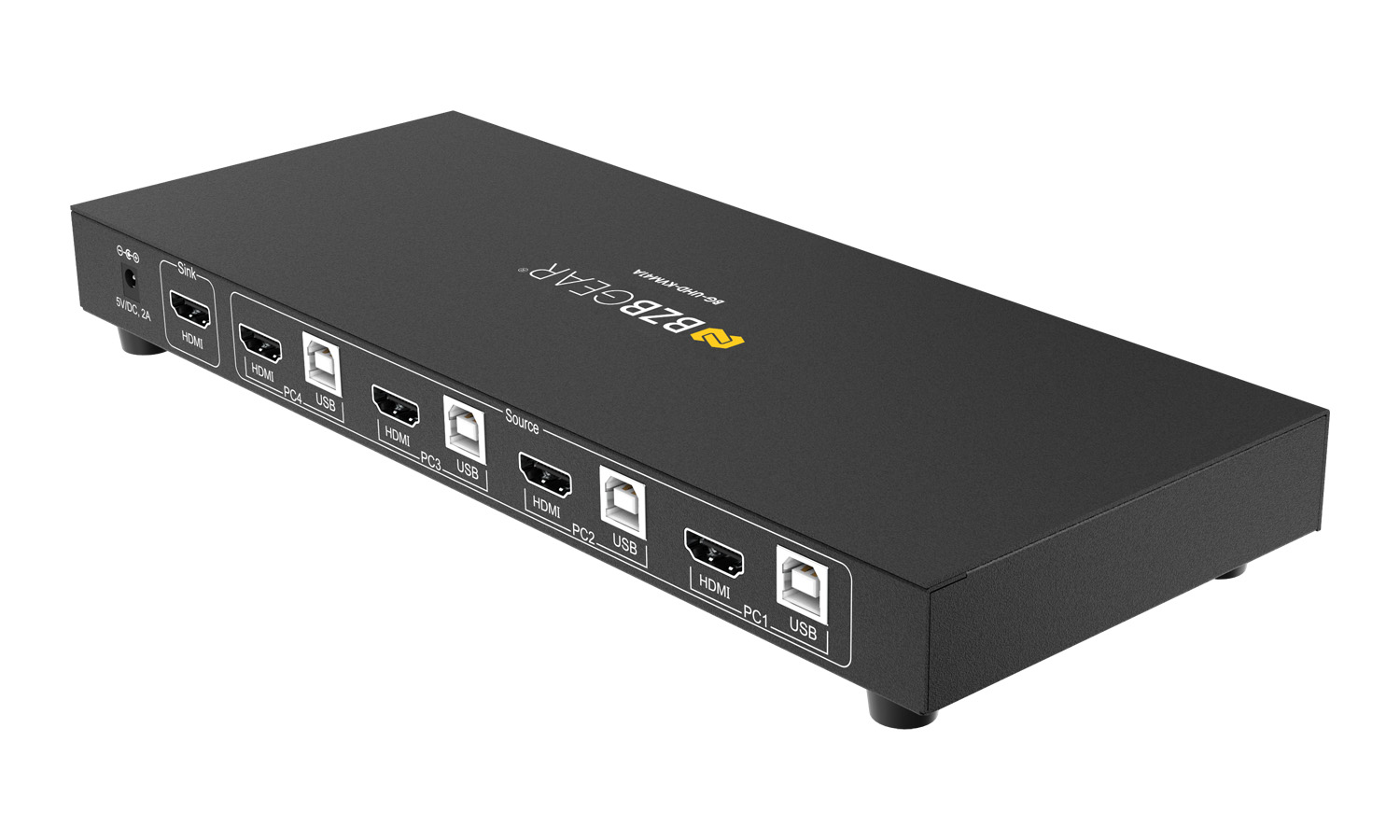

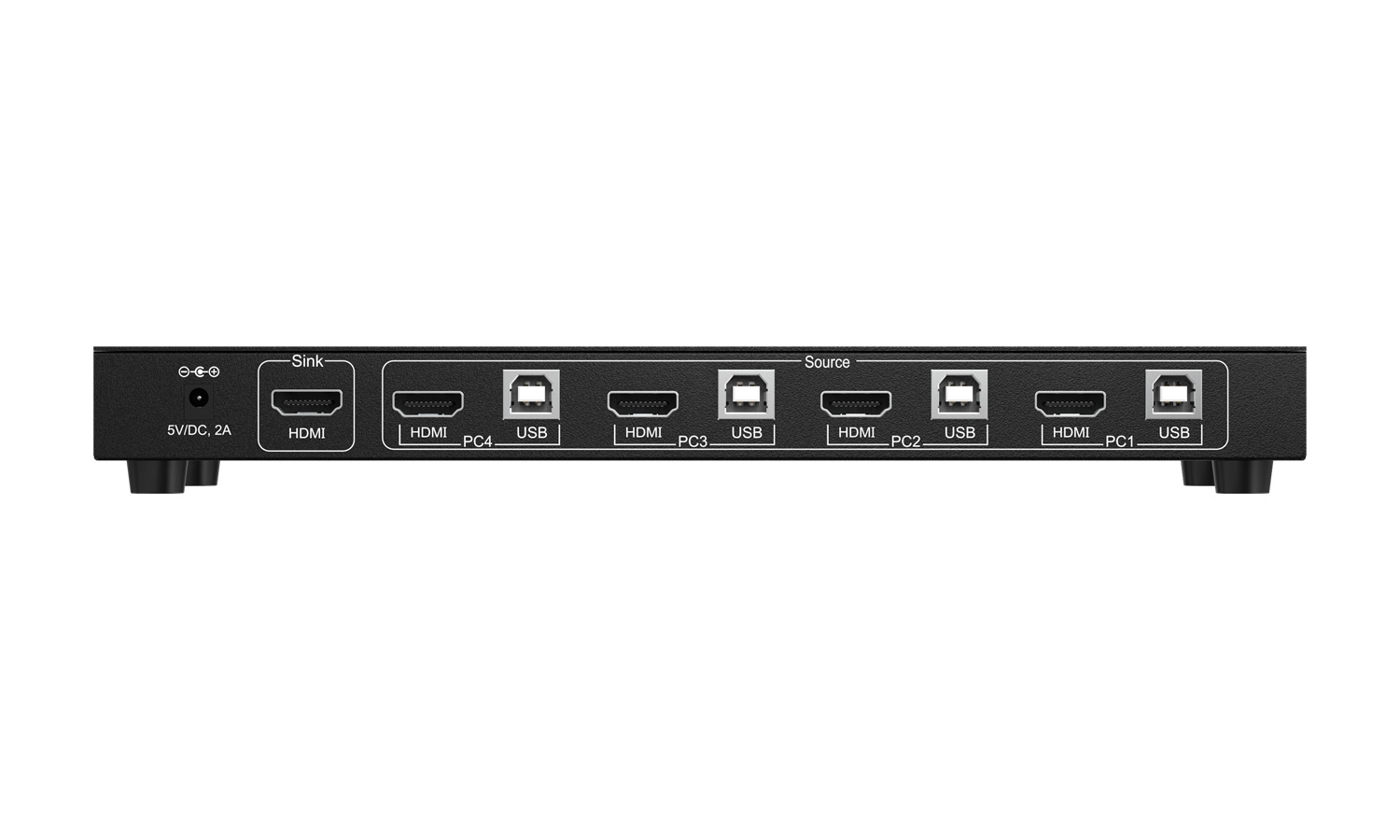

The rear panel of the BG-UHD-KVM41A is equipped with four PC connections, each including one USB 2.0 type-B host port and one HDMI 1.4 input. There is also one HDMI 1.4 output for connection to a monitor. On the front panel, there are three USB 2.0 ports for a keyboard, mouse, and a spare port for additional devices. The BG-UHD-KVM21A also provides 3.5mm audio connections for a microphone and headphones/speakers.

Control

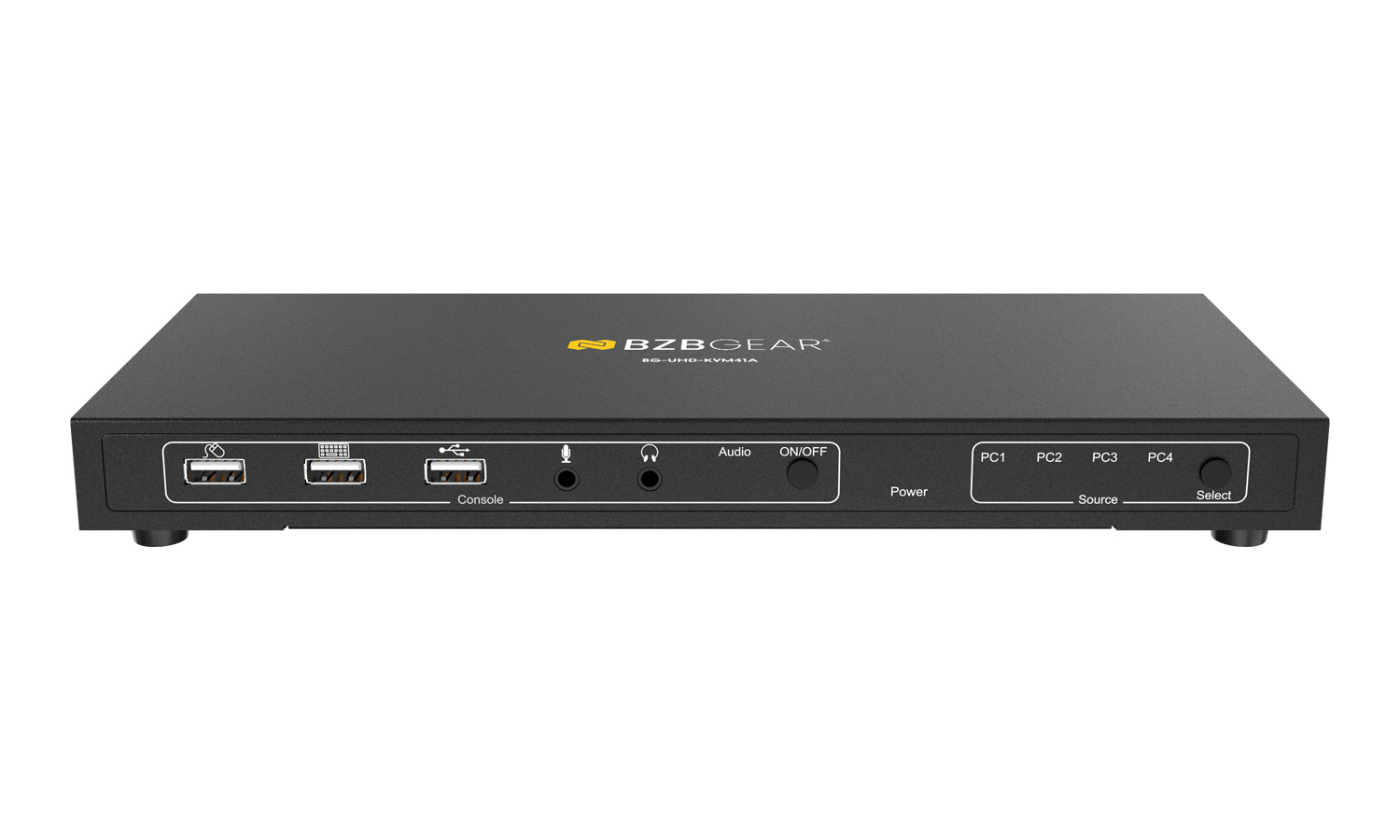

The BG-UHD-KVM41A is simple to operate using the front panel buttons. The source select button toggles between the four connected computers, switching the HDMI and peripheral connections. It can also be operated using hotkeys. There is also an audio toggle which enables/disables the audio in/out connections.

Third Party Control:
Supports control via RS-232
USB 2.0:
Conveniently share 3 x USB 2.0 peripherals
KVM:
Remotely control 4 computers from a single screen
3.5mm Output:
Stereo audio de-embedding via 3.5mm jack
HDMI:
HDMI 2.0, HDCP 2.2, HDR 10, and Dolby Vision
4K:
Supports resolutions up to 4K @ 30Hz
  • Metal housing for better RF shielding
  • Video bandwidth: up to 3Gb/s
  • HDMI & HDCP compliant
  • Supports all digital audio modes
  • Share an HDTV or display, USB keyboard & mouse, and microphone between 4 USB/HDMI computers and devices
  • Provides an additional USB 2.0 sharing port with over-current detection and protection
  • Switch between devices via IR remote control or front push button
  • Supports 4K @ 30Hz and PC&39;s UXGA 1920x1200 resolutions
  • Supports all digital audio modes
  • HDMI & HDCP compliant
  • Video bandwidth: up to 3Gb/s
  • Metal housing for better RF shielding


Ideal fit to:
- Recording Studios
- Surveillance Systems
- Multi-PC workstation


Who buys it:
- Recording Engineers
- Security Professionals
- Programmers


Interface



HDMI

Crystal clear image with resolutions up to 4K @ 30Hz.

USB 2.0

USB 2.0 plug & play connectivity.

Audio Out

Stereo audio output for connecting to local audio system.

Power

Use supplied Power Adapter.


Video

  • Brand
    BZBGEAR
  • SKU
    BG-UHD-KVM41A
  • Weight
    2.00 lbs
  • Warranty
    3 Years
  • Condition
    New
  • Status
    In Stock

  • 1x BG-UHD-KVM41A
  • 1x Power Adapter
  • 1x User Manual
