BZBGEAR 4K UHD AUTO TRACKING HDMI 2.0/12G-SDI/USB 2.0/USB 3.0/NDI|HX Live Streaming PTZ Camera with Tally Lights

BZBGEAR
Authorized Dealer
SKU: BG-ADAMO-4KND

Product Questions? Ask Our Experts!
  • $2799.00
  • Brand
    BZBGEAR
  • SKU
    BG-ADAMO-4KND
  • Weight
    6.00 lbs
  • Warranty
    5 Years
  • Condition
    New
  • Status
    In Stock
  • Zoom
    12X, 25X
  • Color
    Black, White


  • Color
  • Zoom

BZBGEAR 4K UHD AUTO TRACKING HDMI 2.0/12G-SDI/USB 2.0/USB 3.0/NDI|HX Live Streaming PTZ Camera with Tally Lights

Warranty! Call Us 888 660 2962
  • Weight
    6 lbs
  • SKU
    BG-ADAMO-4KND12X-B
  • Mnf#/Vendor#
    BZBGEAR

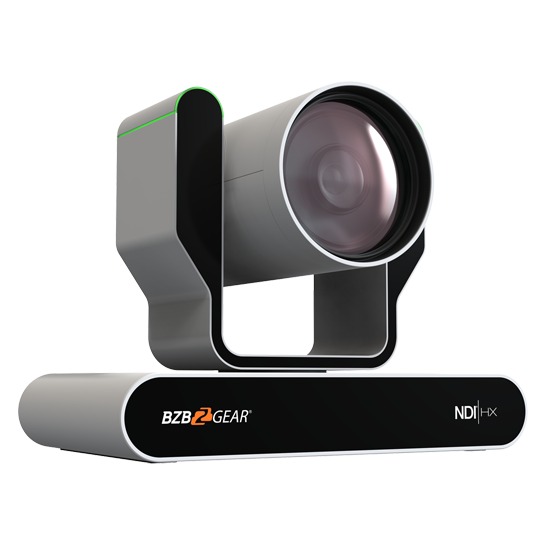

BZBGEAR is proud to announce the next generation of PTZ cameras: the BG-ADAMO-4KND. Brilliantly designed with exclusive features and a unique form factor, the BG-ADAMO-4KND is unrivaled in its class on the live stream broadcasting market.

BG-ADAMO-4KND: The Next Generation

Brilliantly designed with exclusive features and a unique form factor, the BG-ADAMO is unrivaled in its class on the live stream broadcasting market.

The BG-ADAMO-4KND is loaded with features including the latest NDI|HX3 technology, a full interface of video connections, and immaculate 4K@60Hz resolution. Integrated with NDI|HX3 technology, distribute the stream to multiple devices on the network using nothing more than a simple Ethernet connection. The 12G-SDI connection enables long distance cable runs without compromising image quality. Compose shots ahead of time utilizing the up to 255 programable presets, with 10 conveniently accessible using the IR remote. Capable of storing 1 TB of video footage with the Micro SD Card writer, start recording on the fly when other connections are inaccessible.

Attributes

The lens is designed with an advanced auto-focusing algorithm that promptly snaps into focus with dependable accuracy and stability. The 3D noise reduction technology combined with the low-noise CMOS sensor ensures impeccable image clarity. Choose between the 12x optical zoom lens with an 80.4° wide-angle or the 25x optical zoom lens with a 59° wide-angle.

Packed with an array of video connections including NDI|HX3, USB 2.0, USB 3.0, LAN, HDMI, and 12G-SDI, the BG-ADAMO-4KND boasts unparalleled functionality with sophistication and style. The dual stream USB facilitates concurrent main-stream and sub-stream outputs. While the HDMI, SDI, and USB 2.0 connections are capable of transmitting 4K video and audio signals simultaneously.

This camera supports SRT, enabling high-quality, low-latency video to be sent reliably over the internet.

What is NDI?

Network Device Interface (NDI) is a high performance AV over IP standard that allows anyone to use real time, ultra low latency video on existing IP video networks. The NDI open protocol enables professionals to share video through a local area network (LAN) with video-compatible devices. With a single ethernet cable connection, professionals can merge all stages of production from start to finish. That way, all production tasks and processes will be united, so accomplishing a creative vision will be simple. With the NDI 5.5 tool-kit, users will also be able to connect any audio device as an NDI source with NDI’s Audio Direct tool. This adds audio over IP to NDI’s revolution.

What is NDI|HX3?

NDI|HX3 is an updated version of the HX2 standard. The difference is, HX3 provides a better image quality and lower latency than HX2. NDI|HX3 also uses slightly more bandwidth than NDI|HX2, but the increase in bandwidth is not significant enough to be an issue. There are a limited amount of NDI|HX3 compliant devices due to a hardware limitation most NDI|HX2 compliant devices have. Overall, NDI|HX3 is the latest update to the standard and offers the best features.

Auto-tracking Capabilities

The auto-tracking technology uses the latest human detection AI algorithms to exhibit unparalleled tracking speed and accuracy. This monocular tracking method uses only one camera and one lens to easily detect and capture human forms and moving objects in seconds.

The auto tracking is presented in two modes: Presenter Tracking and Zone Tracking. Presenter Tracking tracks its target everywhere without the need to wear any receiving devices. It has strong locking and anti-interference capabilities giving presenters the flexibility to leave the stage and interact with the audience while continuously being tracked. Zone Tracking can be set to track a specific area providing a clear, smooth representation of what’s being shown behind the presenter such as a whiteboard.

Innovative Design

Available in either classic white or black finishes, the chassis of the BG-ADAMO is designed to be as functional and attractive as its formidable feature set. The high-stability substructure provides a solid foundation for the precision lens delivering 4K resolution video at 60fps. Eliminating the need for bulky external accessories, the control arms feature distinctive built-in tally lights that illuminate either green or red with 360-degree visibility.

High Resolution:
Output up to 4K@60Hz over HDMI or 12G-SDI and 4K@30Hz over USB 2.0 cabling
MicroSD:
Record and store up to 1 TB of 4K video
Multiple Video Outputs:
Choose from SDI, HDMI, USB 3.0, USB 2.0, or IP Streaming
Tally Lights:
Integrated red/green LED tally lights
NDI|HX:
Compatible with NDI® 5.5 from NewTek
PoE:
Data, power, and control over a single category cable
  • Available in white or black
  • Multiple forms of control including RS232, RS422, Web GUI, Control App, or IR Remote
  • Stream to your choice of platform directly from the camera, no capture card needed
Compatible with:


Interface



Power

Flexible power options for easy installation. Use supplied power adapter or POE (Power Over Ethernet) function

USB

USB 2.0 & 3.0 for plug & play connectivity for any conferencing service like Skype or Zoom

Control I/O

Supports IR control, IP Control, RS422/485, and cascading RS232 interfaces Download our IP Control App

MicroSD

Record up to 1 TB of 4K video (FAT32)

Audio In

Stereo audio input for connecting mics and embedding local audio into all four video output interfaces

SDI

Output up to 12G (4K @ 60Hz) resolution over SDI cabling

LAN

NDI|HX, Power over Ethernet, IP Control, and streaming interface

HDMI

Crystal clear image with resolutions up to 4K @ 60Hz


Video




Camera Parameters
Optical Zoom 12X 25X
Focal Length Range f=3.85 mm ~ 43.06 mm ±5% f=6.91 mm ~ 214.64 mm ±5%
View Angle H: 7.59°(tele) ~ 80.4°(wide)
V: 4.6°(tele) ~ 50.0°(wide)
H: 1.98°(tele) ~ 59°(wide)
V: 1.12°(tele) ~ 34.14°(wide)
AV F1.8 ~ F3.56±5% F1.35 ~ F4.6±5%
Sensor 1/2.5 inch SONY CMOS sensor 1/1.8 inch SONY CMOS sensor
Effective Pixels 8.51 Megapixels 16:9
Video Format HDMI:
3840*2160p@60/50/30/25/59.94/29.97Hz; 1080p@60/50/30/25/59.94/29.97Hz; 1080i@60/50,30/59.94Hz; 720p@60/50/59.94Hz;
12G-SDI:
3840*2160p@60/50/30/25/59.94/29.97Hz; 1080p@60/50/30/25/59.94/29.97Hz; 1080i@60/50/59.94Hz; 720p@60/50/59.94Hz;
USB2.0:
MJPG: 3840*2160 /1920*1080 /1280*720 /1024*768 /1024*576 /800*600 /720*576 /720*480 /704*576 /640*480 /640*360 /352*288 /320*240p@30Hz;
H264: 3840*2160 /1920*1080 /1280*720 /1024*768 /1024*576 /800*600 /720*576 /720*480 /704*576 /640*480 /640*360 /352*288 /320*240p@30Hz;
YUY2: 800*448 /720*480p@25; 640*360 /432*240p@30Hz
NV12: 800*448p@25; 640*480 /640*360 /432*240p@30Hz
USB3.0:
YUY2: 1920*1080 /1280*720p@60/50/30/25Hz; 960*540 /800*600p@30Hz; 720*576p@50Hz; 720*480p@60Hz; 640*480p@30Hz;
Minimum Illumination 0.05Lux (F1.8, AGC ON)
DNR 3D DNR
White Balance Auto / Manual / One Push / Specified Color Temperature
Focus Auto / Manual / One Key Focus
Exposure Mode Auto / Manual / Shutter Priority / Aperture Priority / Brightness Priority
Aperture Parameters F1.8 ~ F11, CLOSE
Shutter Speed 1/25 ~ 1/10000
BLC Off/On
Dynamic Range OFF / Dynamic Level Adjustment
Video Adjustment Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve
SNR ≥50dB
Interface Features
Interfaces HDMI, 12G-SDI, NDI/LAN (support POE), USB2.0, A-IN, USB3.0, Micro SD (FAT32), RS232-IN,
RS232-OUT, RS422 (Compatible with RS485), Dial switch, DC12V, Power Switch
Video Compression LAN: H.264, H.265
USB 2.0: MJPG, H264, H265, YUY2, NV12
USB 3.0: YUY2
Audio-in Interface Double track 3.5mm linear Input
Audio-out Interface HDMI, SDI, NDI/LAN
Audio Compression AAC, G.711A
Sampling Frequency 32000, 44100, 48000
NDI/LAN 10M/100M/1000M adaptive Ethernet port, support POE and audio/video output
Network Protocol RTSP, RTMP, ONVIF, SRT, GB/T28181; VISCA Control Protocols
Control Interface RS232-IN, RS232-OUT, RS422 compatible with RS485
Serial Protocol VISCA/Pelco-D/Pelco-P; Baud Rate: 115200/38400/9600/4800/2400
USB Communication Protocol UVC (video)
Power Interface HEC3800 (DC12V)
Power Adapter In: AC110V-AC220V; Out: DC12V/2.5A
Input Voltage DC12V±10%
Input Current <1.5A
Power Consumption <12W
PTZ Parameters
Pan Rotation -170° ~ +170°
Tilt Rotation -30° ~ +90°
Pan Control Speed 0.1°/s ~ 100°/s
Tilt Control Speed 0.1°/s ~ 70°/s
Preset Speed Pan: 78.8°/s, Tilt: 31.7°/s
Preset Number 255 Presets (10 presets by remote control)
Other Parameters
Stored Temperature 14°F ~ 140°F / -10°C ~ +60°C
Storage Humidity 20% ~ 95%
Working Temperature 14°F ~ 122°F / -10°C ~ +50°C
Working Humidity 20% ~ 80%
Dimension 8.7in(L) x 5.9in(W) x 7in(H) [220mm(L) x 150.2mm(W) x 177.5mm(H)]
Weight ~4 Lbs [~1.8kg]
Working Environment Indoor Only
