WyreStorm RXV-35-4K 4K HDR HDMI/HDBaseT Extender (Receiver) with 2-Way IR/RS-232/PoH (35m/115ft)

WyreStorm
Authorized Dealer
SKU: RXV-35-4K

Product Questions? Ask Our Experts!
  • $173.00
  • Brand
    WyreStorm
  • SKU
    RXV-35-4K
  • Weight
    1.00 lbs
  • Warranty
    5 Years
  • Condition
    New
  • Status
    Available


WyreStorm RXV-35-4K 4K HDR HDMI/HDBaseT Extender (Receiver) with 2-Way IR/RS-232/PoH (35m/115ft)

Warranty! Call Us 888 660 2962
  • Weight
    1 lbs
  • SKU
    RXV-35-4K
  • Mnf#/Vendor#
    WyreStorm
Consumer HDMI content is now breaking through the once comfortable HDBaseT 'ceiling' of 10Gbps, with HFR (High Frame Rate). HDR is here already in the form of Blu-Ray, Satellite & Cable (HLG) and gaming content.

Consumer HDMI content is now breaking through the once comfortable HDBaseT 'ceiling' of 10Gbps, with HFR (High Frame Rate). HDR is here already in the form of Blu-Ray, Satellite & Cable (HLG) and gaming content. The RXV-35-4K is the perfect companion for WyreStorm's MXV line-up of matrices when distances of under 35 meters are required. This is the perfect solution for the TX-H2X-VLC modular card, found in the H2XC line.

HDMI 2.0 VIDEO: MAXED OUT!

Always looking ahead, WyreStorm can handle both current & future video content technologies. The highest possible bandwidth that currently exists according to the HDMI 2.0 specification can still be sent using HDBaseT and the latest in lossless compression technology from the matrix to the RXV receiver.

POWER-OVER-HDBASET

With PoH available across all HDBaseT matrix outputs, the headache of hiding power supplies is one less thing to worry about. Power to drive the receiver is sent over the category cable along with the video, audio, control and Ethernet, making installations neat, quick and easy as possible.

SLIM BY DESIGN

As space between displays and the wall they’re mounted to reduces, finding a receiver to fit in this gap can be hard to find. But just because this receiver packs a punch doesn't mean it can't deliver the small footprint that you've come to expect. It also ships complete with all the accessories needed to help the integrator complete the install discreetly and efficiently.

HDBASET

The very core of WyreStorm transmission, we've embraced HDBaseT technology since 2010. We're now taking the capabilities of HDBaseT to the next level and supporting video bandwidths in excess of 10Gbps with our lossless compression technology built in to out H2X matrix platform. The RXV-35-4K will output HDMI content at up to 2160p 4:4:4/60.

For use exclusively with Class B 4x8, 6x6 & 8x8 MXV-H2A range of matrix switchers

Features:

  • Uses WyreStorm's proprietary compression technology for lossless transmission of 4K HDR content, without latency
  • Reliable HDBaseT-HDMI conversion over distance using single Cat6 cable
  • 4K UHD signals up to 35m/131ft (2160p 4:4:4 60Hz 8-bit) and 2K signals up to 70m/230ft (1200p 60Hz 16-bit)
  • Supports HDMI2.0 video standard up to 18Gbps
  • Compatible with HDR standards including HDR-10, HDR-10+, HLG and Dolby Vision (Dolby Vision supported up to 30Hz)
  • Class B HDBaseT supporting the transmission of video, multichannel audio, bidirectional control and PoH
  • Powered remotely via PoH from MXV matrix
  • HDCP 2.2 compatibility

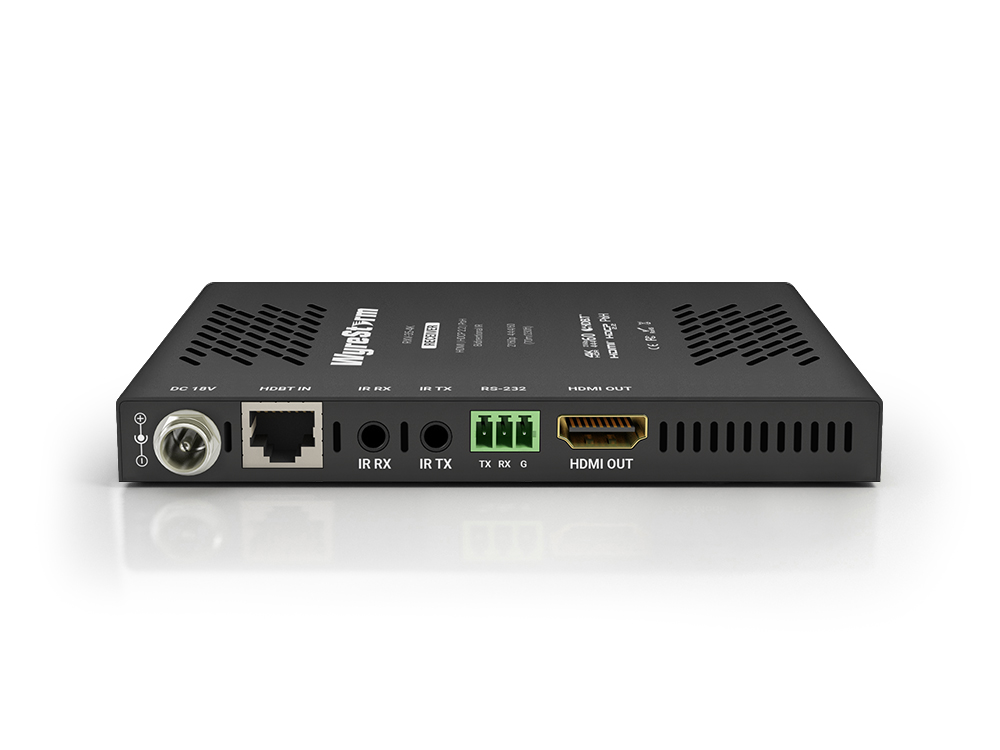

  • Bidirectional IR supported with both IR TX & RX ports
  • RS-232 port for routed 2-way serial communication

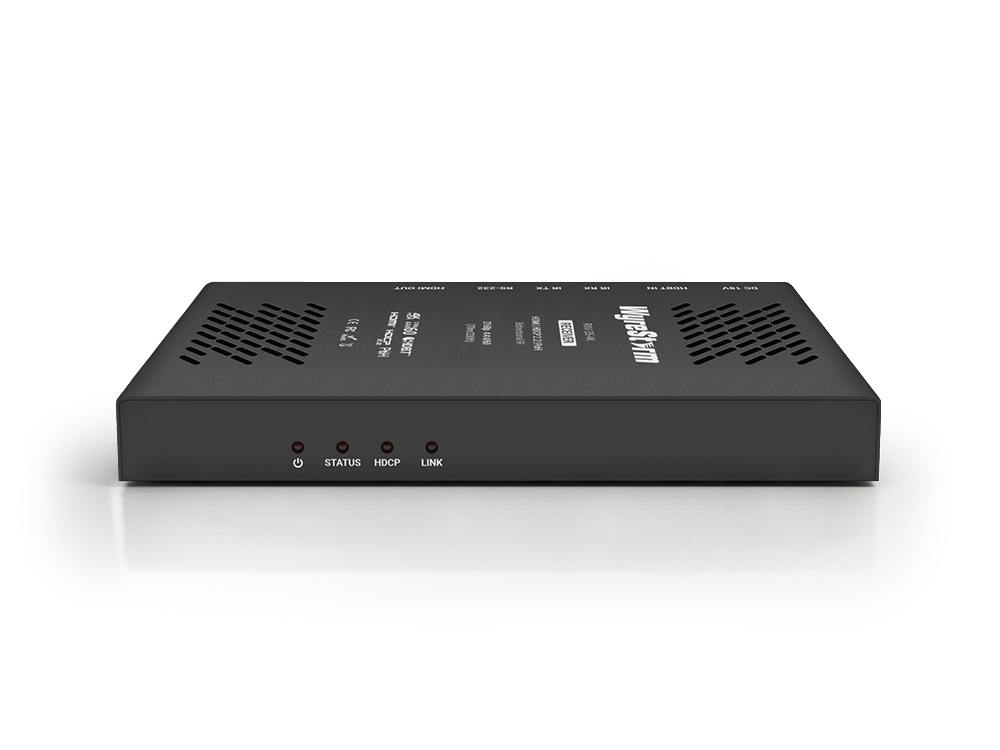

  • LED indication for HDCP presence within signal and transmission link between devices
  • Ventilated steel chassis
  • Conforms to IEEE-568B standards
  • Compact design for convenient and unobtrusive installation
  • Wall mounting brackets and IR accessories included
  • Brand
    WyreStorm
  • SKU
    RXV-35-4K
  • Weight
    1.00 lbs
  • Warranty
    5 Years
  • Condition
    New
  • Status
    Available

  • 1 x RXV-35-4K Receiver
  • 1 x IR Emitter
  • 1 x IR Receiver
  • 2 x Mounting Brackets
  • 1 x 3-pin Screw Down Phoenix Connector
  • 1 x Quickstart Guide
