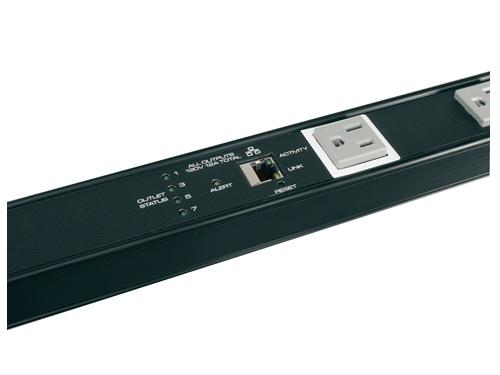

Middle Atlantic RLNK-1015V Select Series Vertical PDU with RackLink/15A/10 Outlet/IP Controlled

Select Series Vertical PDU with RackLink™ simplifies installation and reduces the cost of service by providing intelligent power optimized for AV systems
In stock (50 items available)
  • Brand
    Middle Atlantic
  • SKU
  • Weight
    5.00 lbs
  • Warranty
    3 Years
  • Condition
  • Status
Product availability status
Middle Atlantic

Questions? Ask our experts!

  • $498.00
  • Shipping info
    We offer free ground shipping on every purchase of $300 and more for US.
  • Payment Methods

  • Return Policy
    We Offer a 60-Day Money Back Guarantee
  • Weight
    5 lbs
  • SKU
  • Mnf#/Vendor#
    Middle Atlantic

Select Series Vertical PDU with RackLink™ simplifies installation and reduces the cost of service by providing intelligent power optimized for AV systems.  Available in this low profile, vertical design as well as other options in versatile compact and traditional rackmount form factors, Select Series PDU with RackLink extends control from traditional enclosures to hard to reach displays - and everything in between.  All form factors are enabled with RackLink technology, creating a simple and cost effective solution that puts intelligent control of power distribution at your fingertips, anywhere in the world.

With intuitive setup and operation, pre-emptive problem notification and automatic problem resolution, Select Series PDU with RackLink ensures system reliability and uptime. The ability to choose to control locally or virtually, via third party control system or cloud ensures system uptime and reliability while maximizing your productivity.


  • Individual IP outlet control of up to 4 outlets (10 outlets total)
  • Control start-up or shut-down with remote sequencing
  • Easy set-up and control through RackLink user interface
  • Multiple IP autoping and recovery ensuring optimal system functionality
  • MOV surge and spike protection
  • Fast and easy commissioning
  • Automatic actions improve system reliability
  • Automatic notification of connection status
  • Seamlessly interfaces with 3rd party AV control systems and cloud platforms for scheduling, control, reporting and even customization
RLNK-1015V RLNK-1615V
SUMMARY Form Factor Vertical
Max Load 15A
Rated Load 12A
Surge Protection basic
Sequencing yes
# of Outlets 10 total / 4 controlled 16 total / 8 controlled
Integrated Web Server yes
AC POWER Connection Type 9 ft. IEC(15A)
Line Voltage Nominal: 120VAC / Minimum: 80VAC / Maximum: 140VAC
Maximum Peak Load 15 Amps
Maximum Cont.Load 12 Amps
No Load Power Dissipation Less Than 1W Note: Ethernet disconnected, all relays off
BASIC SURGE SPECIFICATION Peak Impulse Current (8/20uS Waveform) 12,000 Amps, one time, 9,000 Amps, two times within 5 minutes - Maximum peak impulse current pulse as defined between line and neutral - Maximum multiple impulse current derated per spec
Protection Mode Line to Neutral only; no ground contamination
Response Time Less than 1 nanosecond
Surge Energy Dissipation 120 Joules (10/100 micro seconds)
EMI/RF Supression >20dB Calculated Line to Neutral - 100kHz to 1 Mhz - based on nominal impedance
REGULATORY APPROVALS Safety UL 60950-1 and CSA C22.2 No. 60950-1
EMI/RF FCC Part 15, Class B
EVENT DRIVEN/ RESPONSES AutoPing No Response/Recovery Email and/or Control Outlet
GENERAL Operating Temperature Range 32 - 104˚F (0-40˚C)
Humidity Range 0-95% RH, non-condensing
Communication SSL/TLS, SMTP, NTP, DDNS, Cloud, TCP/IP, HTTP (integrated web server)
Warranty 3 years limited warranty
