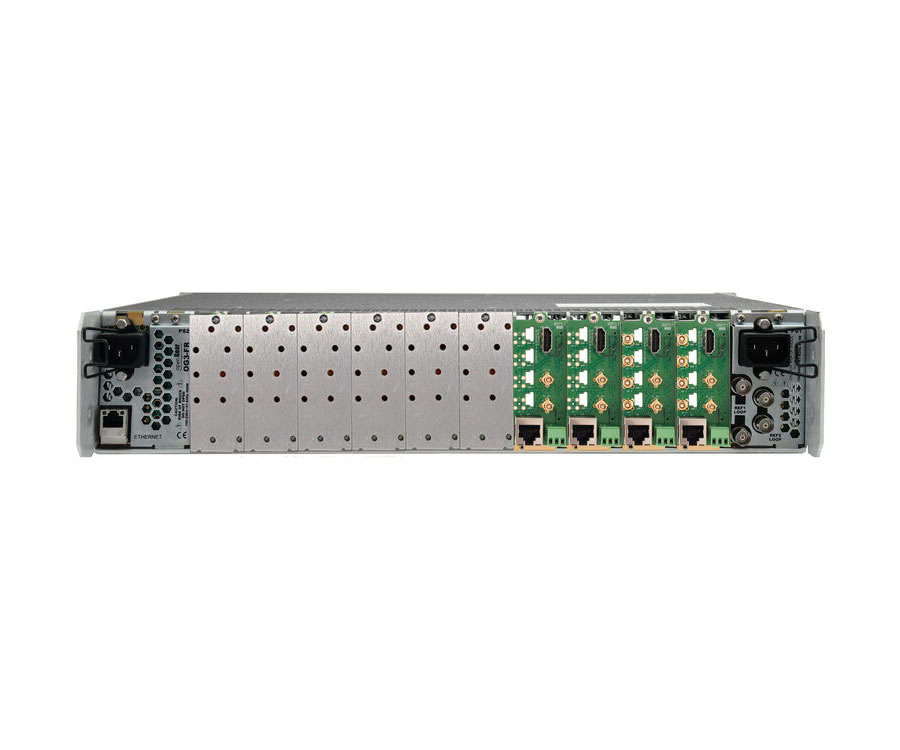

Add this OG-DL-4+4 openGear-Based Multiviewer from Apantac to your broadcast facility for multiviewing HDMI and 3G-SDI video. This compact 2 RU unit features four 3G/HD/SD-SDI inputs with 16-channel audio and four HDMI inputs, supporting up to 1080p60 and 1200p50 with four channels of embedded audio.
The openGear-based multiviewer unit supports 16 GPI for tally/presets via the RJ45 GPI port, as well as 30 internal presets and the AXP API. SDI and HDMI outputs support multiview resolutions up to 1600 x 1200, 1080p, and 1200p 50/60. The unit supports labeling each multiview window, closed captioning, video black, presence/format, and video frozen alarms. You can choose to purchase an optional PS-OGX additional power supply for redundancy
Features
- Four 3G/HD/SD-SDI inputs and four HDMI inputs
- Single frame of processing delay
- Decode and display up to 16 channels of SDI embedded audio
- Decode and display up to four channels of HDMI embedded audio
- HDMI and SDI output resolution up to 1920 x 1080p60
- Multiple labels per video windows: UMD, IMD, OMD, and standalone labels
- Decodes closed captioning on line 21, 608/708 on SDI
- 16 GPI for tally/presets
- Video presence/format, video black, video frozen alarms
- Audio presence, audio high/low alarms
- 2 RU rackmount form factor
- Optional redundant power supply PS-OGX
