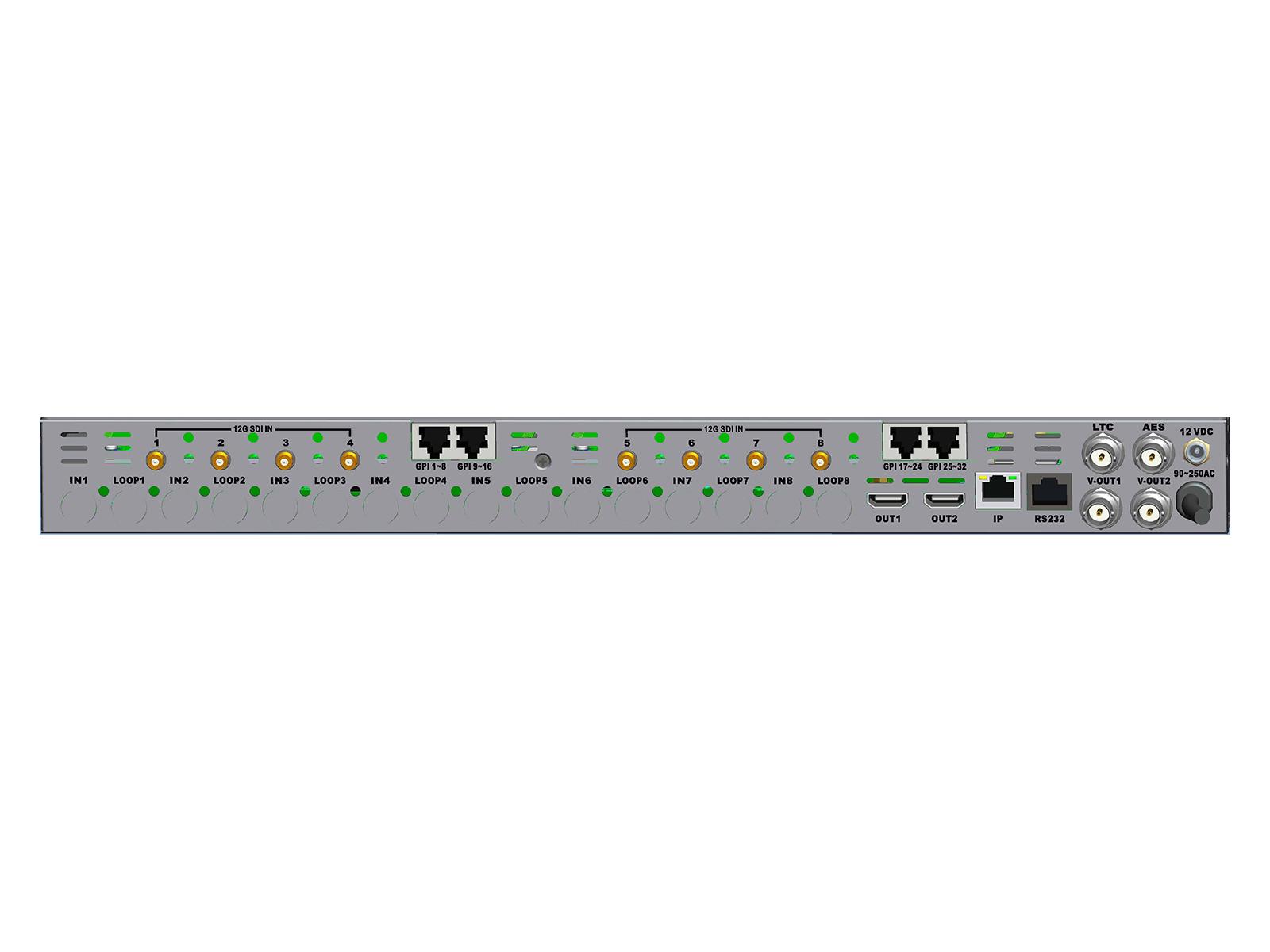

8 x 2 multiviewer in 1 RU. Accepts 8 x 12G, 3G, HD SDI inputs, auto detect. Two sets of DVI/HDMI (1080P 50/60Hz) and SDI (1080i/P 50/60Hz) Outputs. Windows can have multiple sizes and can be moved freely. UMDs, OMDs and standalone labels. Analog, Digital Clocks/Counters and Logos. 32 GPI for tally/presets. Supports the TSL protocol over IP and serial. 30 internal presets.
Features
- Accepts 8 12G SDI (2SI) inputs or 4 12G SDI (Square Division)
- Windows can be sized and moved freely
- Each input can be duplicated up to 16 times
- All inputs are available for both outputs
- Decode up to 16 embedded audio per input
- Total of 128 audio meters
- 2 independent HDMI and SDI outputs with 4 windows
- Ethernet for configuration and external control
- Dynamic UMD/labels & Tallies (TSL)
- Stand alone labels, customizable logos
- 32 GPIs for tallies, counter controls or preset recalls
- 2 digital and 2 analog clocks/counters can be sync’d with LTC or NTP
- Borders with adjustable width/color
- Two sets of Safe area markers per window
- Visual Alarm tags for video/audio alarm detection
- Audio monitoring output pairs - AES, Embedded SDI and HDMI outputs
- 3 year limited warranty
Standard Accessories
- Rack mount
- 4 x RJ50 to DB9 for GPI
- 4 x breakout terminal blocks
- RJ45 to DB9 for serial
- CD (software, manual)
Options
- Redundant power supply
- 1 ft HD-BNC -BNC Female cables
- ATC/VITC Display License
