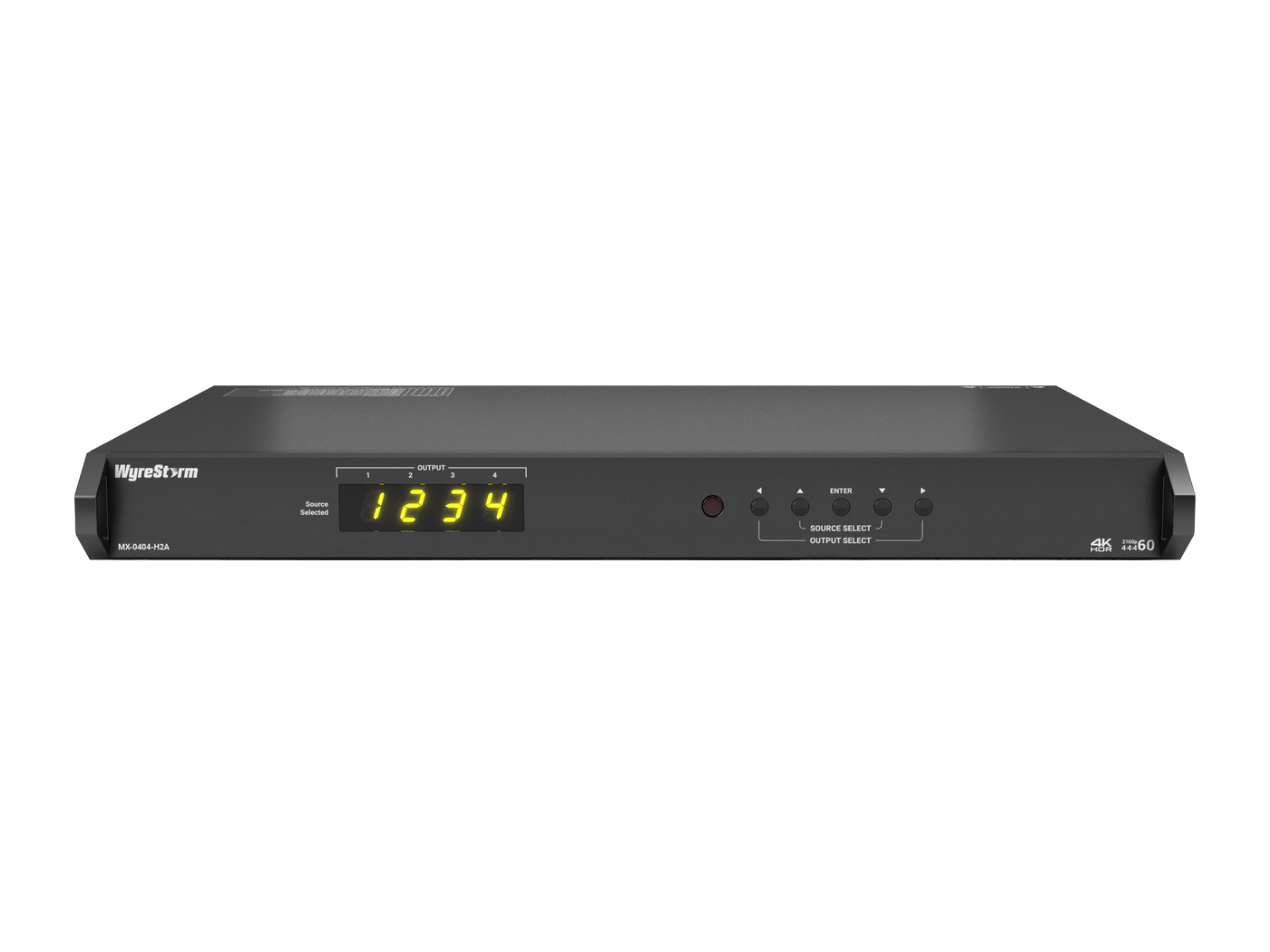

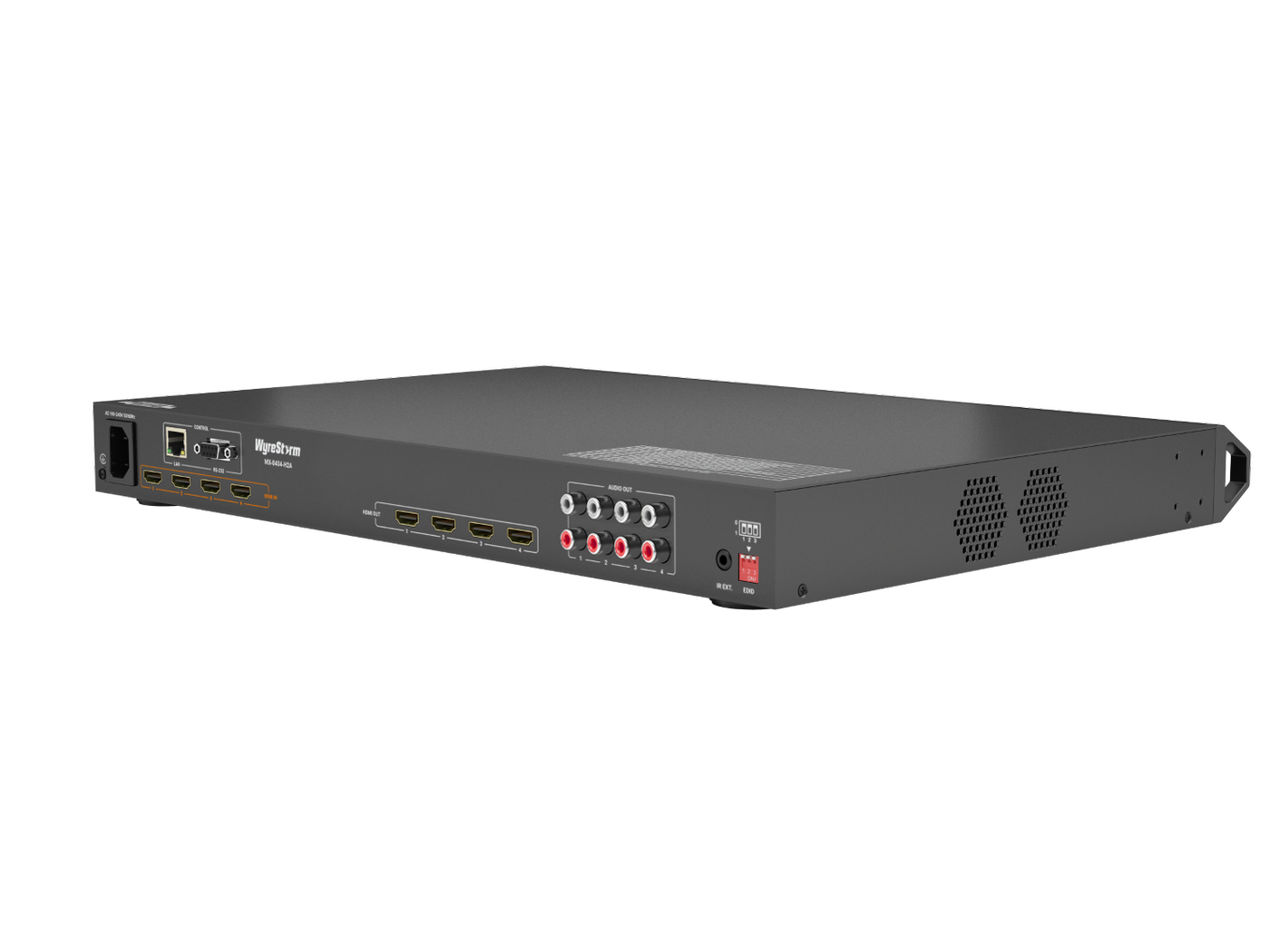

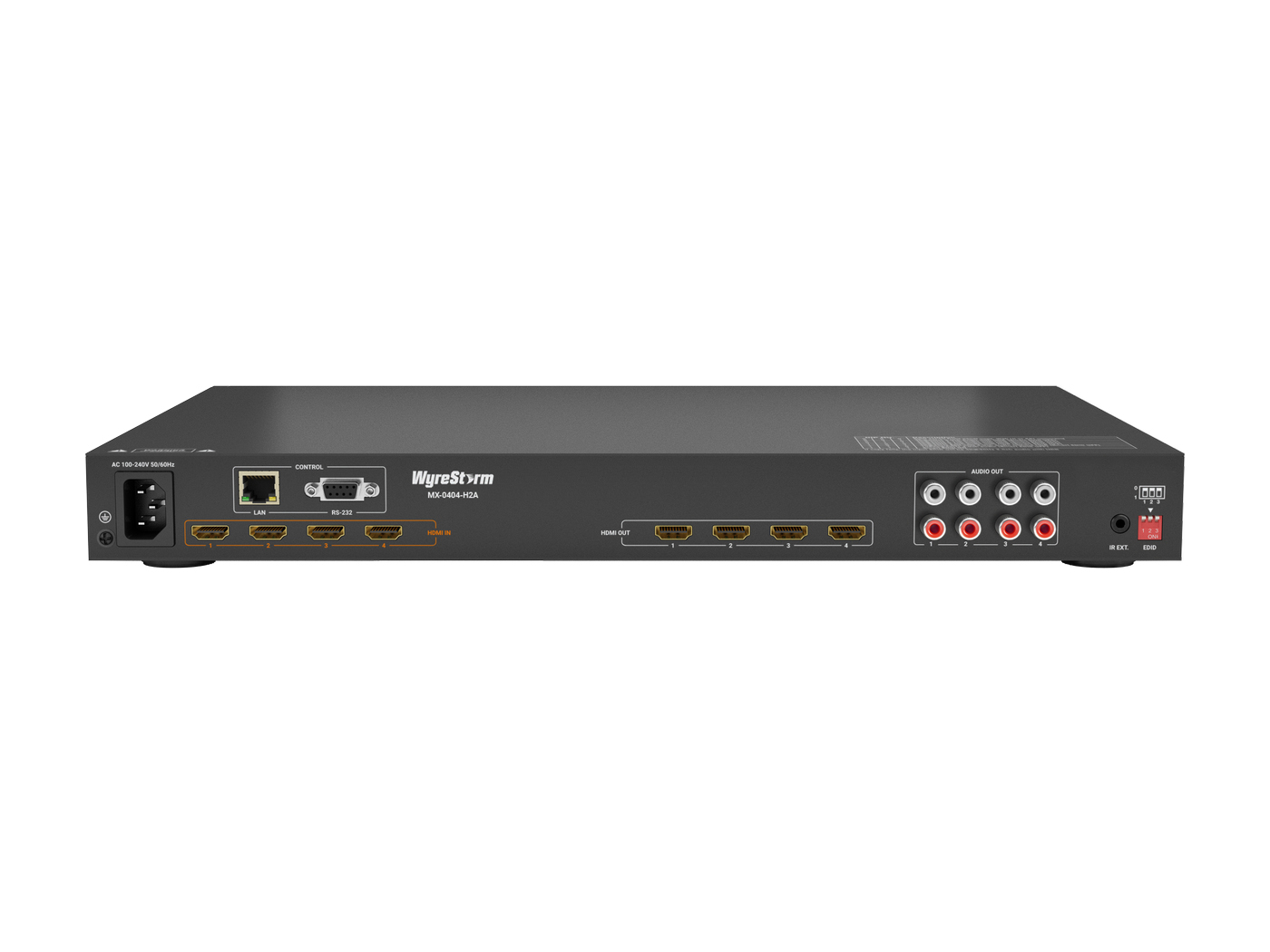

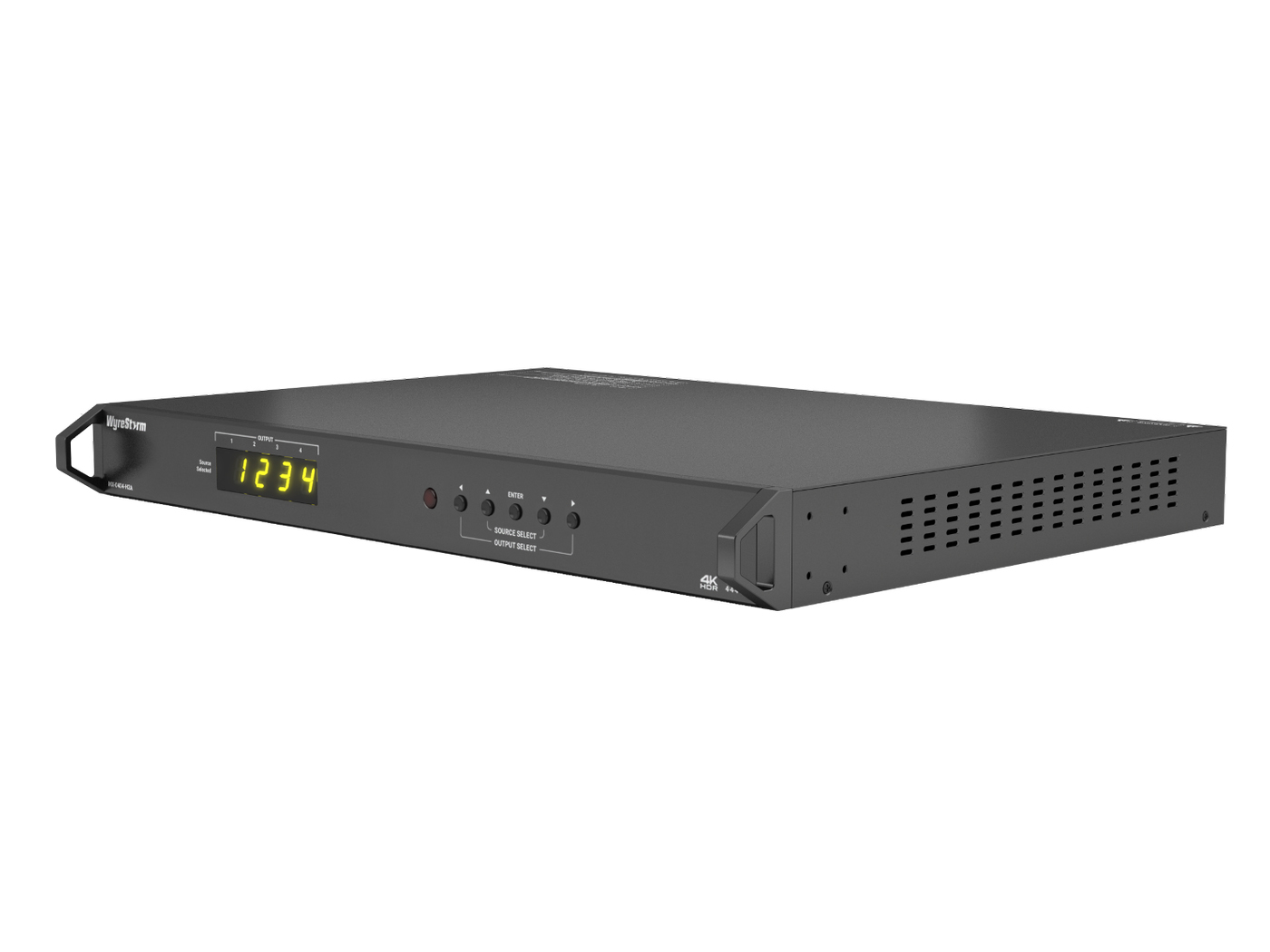

Compact and fully-featured, the MX-0404-H2A matrix switcher might be the entry level model of the H2 matrix family, but don't that fool you. Supporting 18Gbps throughput to the full video capability of HDMI 2.0 it handles distribution of 4:4:4/60 and HDR content, supporting the latest broadcast standards and next generation 4K HDR source content. Further features such as audio de-embed and A/V mute enhance the offering and with CEC power triggering for compatible connected screens, the MX-0404-H2A is the perfect match for WyreStorm’s range of hybrid optical HDMI cables.
Features:
- 4x4 HDMI 4K matrix switcher supporting:
- Content up to 4K/60 4:4:4 & RGB 8-bit
- The latest HDR standards, including HDR-10, HLG and Dolby Vision at 60Hz
- HDCP 2.2 encryption technology ensuring compatibility with the latest 4K UHD content and sources
- HD Multichannel audio up to DTS:X and Dolby Atmos to all outputs
- HDMI Inputs and HDMI outputs support bandwidths of up to 18Gbps
- Compatible with DVI-I and DP++ v1.3 signals from compatible devices
- Stereo RCA Audio outputs allow audio to be de-embedded from HDMI outputs
- Automatic (signal sensing) or manual (API operated) CEC power triggering of all connected screens or projectors (CEC compatibility required)
- A/V Mute function gives complete distribution control to a user allowing the signal to any zone to be independently switched off
- SmartEDID feature also dynamically detects display/source capabilities and automatically outputs the highest possible resolution
- Additional EDID management through DIP switches for global setting or via WebUI for independent management of EDID per source
- Embedded WyreStorm WebUI enables simple source switching and installer set-up & configuration
- WebUI includes full EDID management to read, copy, store or import EDID from connected devices
- Assign a different EDID to each connected source device
- Flexible control options – front panel buttons, infrared remote control, local IR, RS-232, Telnet or WebUI
- 3.5mm jack input for receiving local IR commands out of line-of-sight
- Simple switching matrix remote control included, which can also be learned into a universal remote handset to allow the control of multiple devices from one handset
- Option for end-user WebUI switching interface
- Compact 1U chassis with adjustable depth rack mounting brackets included
- US, UK, EU & AU Power cables included
- Can be combined with WyreStorm EXP-CON-DAC-D digital audio converter to downmix Dolby Digital 5.1 content to mix stereo and surround sound zones
- Capable of transmitting content to 50m/164ft using WyreStorm HAOC range of hybrid optical HDMI cables
