What Is KVM and Which One Do You Actually Need?

If you’ve ever found yourself juggling three keyboards, two mice, and a tangle of monitor cables just to switch between a few computers, you’ve already discovered why KVM exists. Whether you’re managing a control room, a broadcast suite, a trading floor, a security operations center, or a busy production studio, the ability to control multiple machines from one operator station isn’t a luxury — it’s how the work actually gets done. The trick is figuring out which kind of KVM solution fits your job. Pick wrong, and you’ll either overspend on features you’ll never touch or underbuild a system that chokes your workflow six months in.

Let’s break it down.

First, What Does KVM Actually Mean?

KVM stands for Keyboard, Video, Mouse. At its core, a KVM solution lets one operator — or many operators — interact with multiple computers using a single set of input/output peripherals. Instead of physically walking between machines or staring at a wall of separate keyboards, you switch sources with a hotkey, a button press, an on-screen menu, or a touch panel, and your monitor, keyboard, and mouse seamlessly reattach to the chosen computer.

That sounds simple, and for one user with two PCs sitting next to each other, it absolutely is. But once you start adding distance, more users, higher resolutions, USB peripherals beyond keyboards and mice, and zero-latency requirements, the conversation gets a lot more nuanced. Different KVM categories exist for very different jobs, and the price gap between them can be enormous.

Here are the main types you’ll actually encounter.

Type 1: The Basic Desktop KVM Switch

The basic desktop KVM is the entry point and probably what most people picture when they hear the term. It’s typically a small box with two, four, or eight ports for source computers, plus outputs for a monitor (or two), a keyboard, and a mouse. You hit a hotkey or push a button, and the switch instantly redirects control.

These are perfect for the home office where you’re toggling between a work laptop and a personal desktop, the small edit bay running a Mac and a PC, or the help-desk technician supporting a couple of spare test machines. They’re affordable, plug-and-play, and most modern units handle 4K at 60Hz over HDMI 2.0 or DisplayPort 1.2.

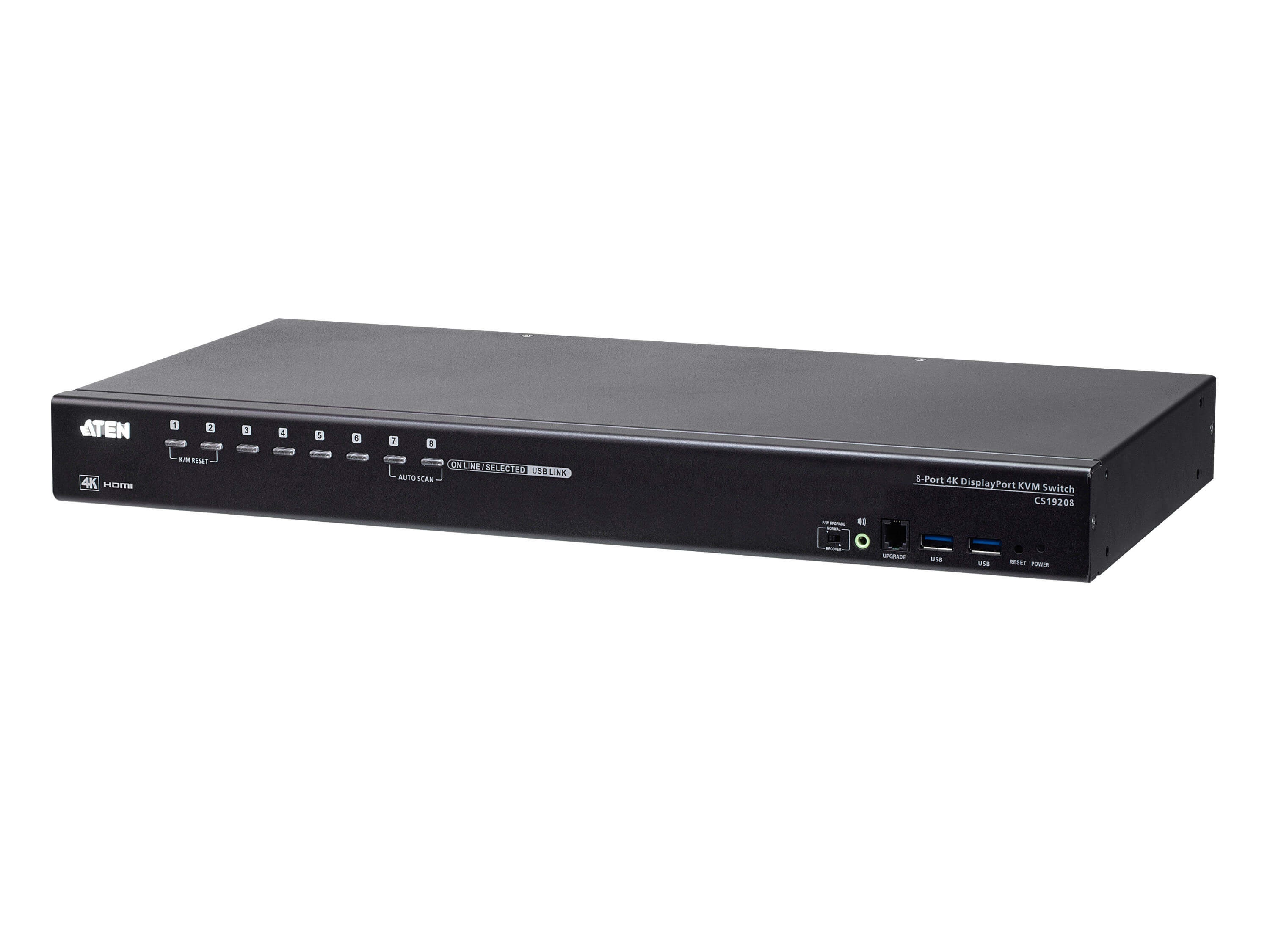

On the Aten side of the catalog, the Aten CS84U is a workhorse four-port PS/2-USB VGA switch for legacy gear that’s still doing real work in the field. The Aten CS19208 is the modern equivalent for newer setups — an eight-port 4K DisplayPort KVM with USB 3.0 peripheral support, ready to handle anything from a creative workstation to a small command-and-control rig.



The catch with all of these: they assume your sources are sitting within a couple of feet of your operator position, and they don’t scale beyond a single user.

Type 2: KVM Extenders

Once your computers need to live somewhere other than under your desk — a server closet, a rack room, a different floor — you’ve moved into KVM extender territory. Extenders separate the operator station (keyboard, video, mouse) from the source machine, with a transmitter at the PC and a receiver at your desk. The link between them runs over a single Cat6 cable, fiber, or coax depending on the model.

This is the right tool when you want quiet, cool, secure machines locked away in a server room while operators work in a clean, peripheral-only environment. The BZBGEAR BG-EXHKVM-70C is a popular pick here — uncompressed 4K@60Hz HDMI with HDR and ARC, USB 2.0 KVM, and zero latency over a single Cat5e/6 run up to 230 feet. Need to go further or run it through a fiber backbone? The BZBGEAR BG-UHD-18GFE does the same job over fiber with bi-directional IR and RS-232 control built in. For dual-monitor operator stations, the Hall Technologies ULTRA-4K-S transmitter and ULTRA-4K-R receiver pair pushes two 4K HDMI signals plus USB 2.0 over a single Cat6 cable up to 100 meters.

Extenders are also where you start seeing dedicated USB transparency for things like CAC readers, 3D mice, audio interfaces, and other peripherals a basic switch won’t pass through.

Type 3: KVM over IP

KVM over IP takes the extender concept and pushes it onto your standard Ethernet network. Instead of dedicated point-to-point cabling, transmitters and receivers become endpoints on a 1G or 10G IP backbone. Any operator can pull up any source, from anywhere on the network — including remotely, when the system is configured for it.

This is a major step up in flexibility. Broadcast facilities, government command centers, healthcare systems, and large enterprise IT operations lean heavily on KVM over IP because it lets them scale on demand. Add another PC, you add another encoder. Add another operator, you add another decoder.

The Adder ADDERLink INFINITY 2122 transmitter and receiver pair (ALIF2122T-US and ALIF2122R-US) is a proven dual-head-over-IP solution that scales from a single point-to-point pair into a full matrix as your needs grow. The Aten KE8950T delivers 4K HDMI single-display KVM over IP for similar use cases. If you’re looking at a smaller deployment or want PoE on the endpoints, the Apantac KVM-IP-Tx-PL transmitter and KVM-IP-Rx-P receiver run 4K/UHD over Gigabit Ethernet up to 170 meters point-to-point — a clean fit for compact, PoE-friendly installs.

Network video standards continue to evolve, so you’ll see KVM-over-IP solutions built on SDVoE, JPEG 2000, H.264/265, and proprietary protocols, each with different trade-offs around latency, bandwidth, and image quality.

Type 4: Matrix KVM Systems

The matrix KVM is the high end of the category and the right answer when many operators need flexible access to many sources, often simultaneously. Think network operations centers with twenty workstations watching forty servers, broadcast master control rooms, transportation dispatch, financial trading desks, and operations adjacent to air traffic.

A matrix KVM gives every user independent access to any source, supports multi-monitor operator stations, allows shared sessions where two people work the same machine, and integrates with control systems for hotkey shortcuts and macros. The Adder ADDERView AVM-C12-US is a strong starting point — a preconfigured 12-port matrix switcher with ten CATx ports, two SFP slots for fiber, 1GbE backbone, and PoE — ideal for command-and-control rooms that need many users sharing many sources without a full custom build-out.

When you’re pushing into 4K, 5K, and 8K-ready territory, the Adder ADDERLink INFINITY 4000 Series — built around transmitters like the ALIF4001T-US — was the world’s first dual-head 5K IP KVM matrix over a single fiber, and it remains a benchmark for high-resolution control rooms. The Aten KX9970R receiver pairs with its companion transmitter for 5K DisplayPort KVM over a 10Gb network on copper or fiber, giving you headroom for the next refresh cycle.

These are full-blown infrastructure deployments, not shelf-and-go boxes — engineering and integration support matter most here, and that’s exactly the conversation our team is built to have.

How to Pick the Right One: Four Decision Filters

When you call the BZB Express team, these are the questions we’ll ask first. Run through them yourself and you’ll narrow your choice quickly.

1. Distance. How far apart are your operators and your computers? If everything sits within arm’s reach, you’re shopping desktop switches. If there’s a wall, a closet, or a building between them, you’re in extender or IP territory.
2. Number of users. One operator switching between a handful of machines is a different problem than five operators sharing access to twenty machines. One-to-many is a switch. Many-to-many is a matrix.
3. Resolution. What’s your highest-resolution source today, and what will it be in three years? 1080p is fine on almost any KVM made in the last decade. 4K at 60Hz with HDR pushes bandwidth into territory where cheap switches fall apart. 8K is here for high-end visualization, simulation, and broadcast — and it’s where matrix and IP systems really earn their keep.
4. Latency. For office work, a few milliseconds of switching delay is invisible. For live production, gaming, mission-critical control, or anywhere a delayed mouse click means a lost shot or a missed call, you need to spec for sub-frame latency. That’s a question of the underlying technology — uncompressed pixel-perfect over fiber feels different from compressed-over-IP, and your application decides which one is acceptable.

The Place Where You Don’t Overbuy or Underbuy

Here’s the honest truth about KVM: a desktop switch can run under a hundred dollars, and a fully deployed matrix KVM system can run into six figures. The technology between those two ends scales smoothly, but the budget does not. Spec one tier too high and you’ve burned money on capacity you’ll never use. Spec one tier too low and you’re tearing the system out within a year.

That’s where BZB Express earns its place in your project. As an Authorized Dealer for BZBGEAR, Adder, Aten, Atlona, Apantac, Hall Technologies, Gefen, Avenview, Kramer, and other KVM and AV-over-IP specialists in our catalog, our job is to match your distance, user count, resolution, and latency requirements to the right product at the right price — not the most expensive box on the shelf, and not the cheapest one that just barely works. We do the homework so you don’t end up in either ditch.

Ready to scope your KVM project? Explore our full Brand Directory — including dedicated KVM lines from Adder, Aten, and Kramer — at bzbexpress.com, or contact our sales team and engineers at [email protected] or 1.888.660.2962 for a free consultation. Our BZB Express experts are ready to walk you through it.
