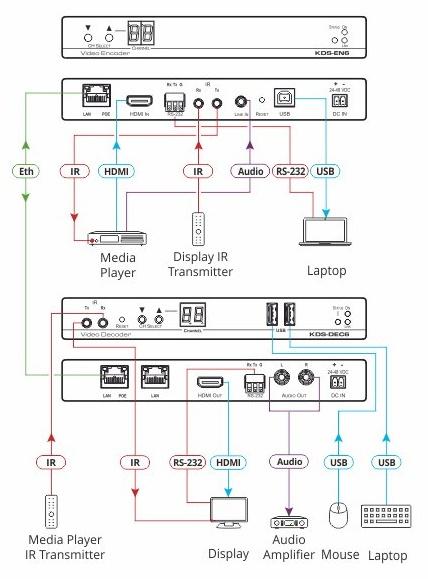

The KDS−EN6 encoder provides streaming over an IP network that carries
4K@60Hz (4:2:0) video, audio, IR, RS−232, USB over IP with HDCP 2.2 in unicast
(one−to−one) or multicast (many−to−many) configurations.
Features:
- Video Support — HDMI 4K@60Hz (4:2:0).
- Audio Support — HDMI/line in, 7.1 PCM, Dolby True–HD, and DTS–HD
Master audio.
- Virtualization — IR, USB, RS–232 over IP.
- Network — Switch 1G multicast IGMP snooping managed layer 2.
- Power — PoE or external power supply.
- Control — Kramer Network, Web UI, API.
- HDCP — 2.2 compliance.
- Video Effects — Video wall.
