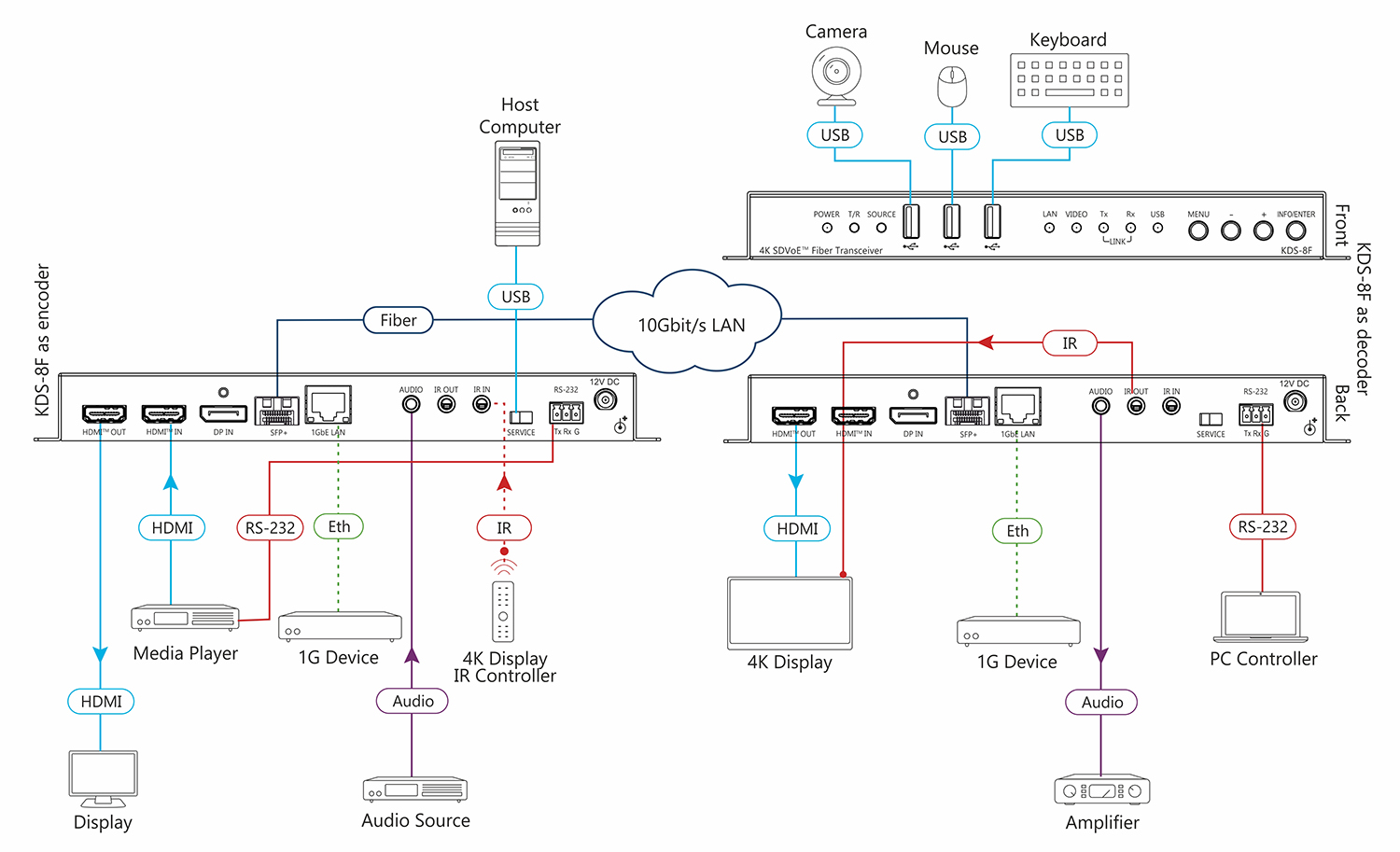

KDS-8F is a high-performance, zero latency, 4K@60Hz (4:4:4) video streaming transceiver for streaming via Ethernet over single-mode and multi-mode optical fiber. KDS-8F can be set as either an encoder or decoder. As an encoder, it encodes and streams the HDMI or DisplayPort input along with IR, RS-232, analog audio and USB, over an IP network. As a decoder, it receives the encoded signal and decodes it for output.
Features
- High–Performance Video Streaming Transceiver - Streams up to 4K@60Hz (4:4:4) resolution signals over a 10G network interface, providing lossless compression.
- Maximum Compatibility - Fully standard and compliant SDVoE™ codec, enables compatibility with other software and hardware streaming platforms.
- HDCP 2.2 Compliant, HDR Support, Genlock and Fastswitch Modes Support.
- High–Speed 10G Network Switch - Managed switch provides multicast, jumbo frames, IGMP snooping and fast leave.
- Analog Audio Embedding - Provides an unbalanced analog audio port for embedding audio into the streaming signal.
- Bi–directional USB over IP.
- Bi–directional IR and RS-232 over IP- Control an IR or serial device located on the decoder side from the encoder and vice versa.
- Video Wall Support.
- Multiview Support.
- Easy, Cost-Effective Maintenance - LED indicators for main power, Tx/Rx mode setting, HDMI/ DisplayPort video source detection, USB connection and Tx and Rx transmission enable easy local maintenance and troubleshooting.
- Simple System Management- Remote system management support to enable quick and efficient remote system and device life-cycle management.
Applications
- Medical facilities and hospitals
- Government facilities
- Live entertainment
- Control centers
- Large scale matrixes
