Venture AV™ over IP Encoder aids 4K, two PoE ports Local
Area Network Switch, High Definition MI Pass-through, Audio
In, Audio De-Embedding including Lip-Sync & Digital Signal
Processor, KVM/Universal Serial Bus.
Features:
- Enterprise AV Over IP: Utilizes a
managed gigabit network
switch to enable video distribution, matrix switching, and
extension

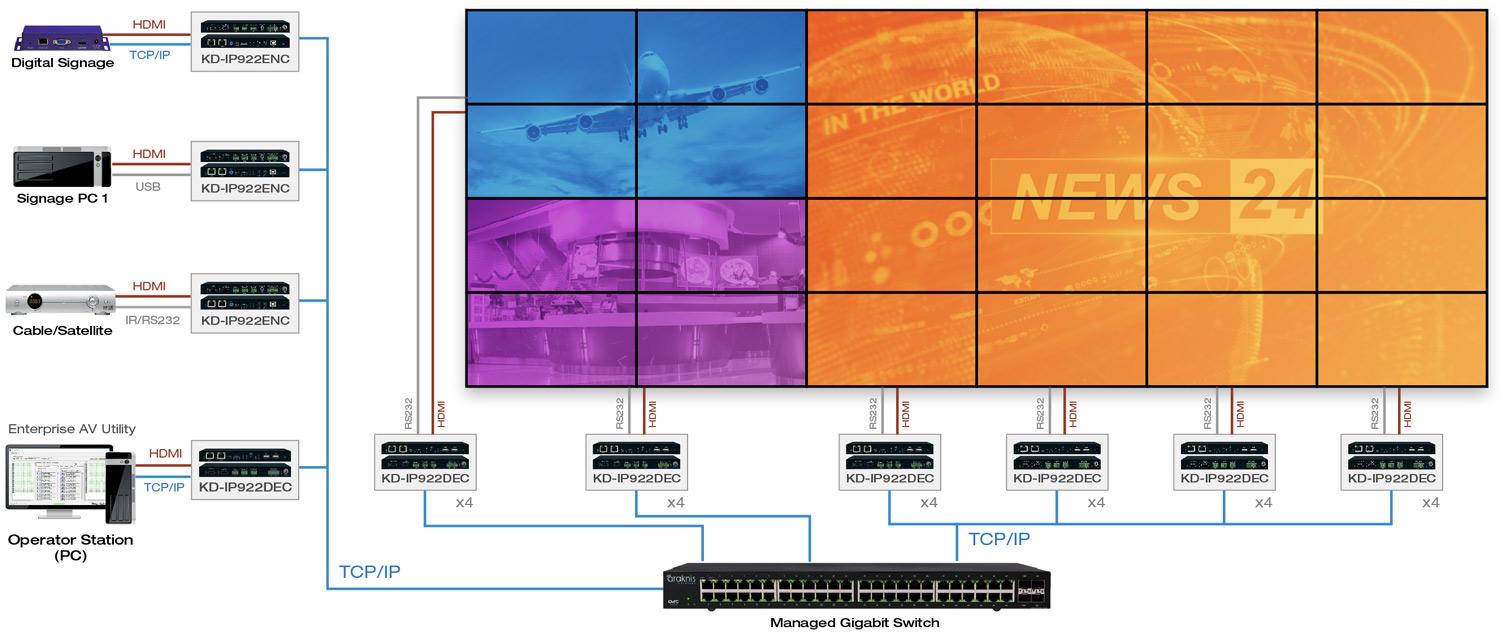

- Video Wall Processing:Encoder +
Decoder systems create video
walls with up to 8V and 8H monitors
- HDCP 2.2: Compliancy up to HDCP
2.2 and backward
compliant
- 4K/Ultra HD Resolution: Support
for 4096x2160 or 3840x2160
24/25/30Hz at 4:4:4/8 Bit or 60Hz at 4:2:0/8 Bit
- Signal Extension: Up to 330 ft. /
100 m @ 4K 24/25/
30(4:4:4)/60(4:2:0) into network switch or or point-to-
point
- Power over Ethernet: Does not
require power supply when
integrated with compatible PoE network switch
- Dual LAN: Enable system expansion
beyond a 48 port system
- Redundant Power Supply: Added
reliability for non-PoE
integration
- Audio De-Embedding: Audio from
the HDMI input is de-
embedded through Analog L/R Balanced/Unbalanced
- phoenix terminal to enable external audio connectivity
with audio distribution
systems and amplifiers
- Audio DSP: Volume, muting, 3-band
EQ, and lip-sync delay
controllable on audio de-embed port
- HDMI Pass-Through: Enables
connection to local monitor or
additional devices up to 75 ft.
- HDMI® and HDCP Licensing:
Fully licensed and
compatible with HDCP 2.2 and HDMI latest technology
- such as 4K/UHD 4:2:0/8bit at 60 f/s
- Control: 3 multi-function ports
controllable via KeyCode
open API, as Compass Control® master controller,
- or as control extension via IP
- EDID Control: Internal library
features 15 default EDID
configurations and native EDID data from
- Output/Display devices connected to Decoder
- Hot Plug Detection Control:
Enables integrator to choose
if active signal voltage is forced to connected input
devices
- Full Buffer System™:
Manages TMDS re-clocking /
signal re-generation, HDCP authentication with source &
display,
- EDID Control handshake, and Hot Plug control
- USB 2.0: Supports synchronous and
isochronous connections
- IR Sensor: Sensor powering via +
5V IR In port collects
line-of-sight IR from remote(s) without external IR
connecting block
- Up/Down IR: Two channels of IR
enable control to/from
devices connected to Encoder and Decoder units
- RS-232: Bi-Directional control to/
from Encoder and Decoder
unit on Phoenix connector
- RS-232/TCP-IP Control Mode:
Provides control of unit as
well as connectivity status
- Lossless compressed digital audio:
Support for Dolby®
TrueHD, Dolby® Digital Plus, Dolby Atmos®, and DTS-
HD Master Audio™
- Control System Support:
Controllable by all IR, RS-232
& TCP/IP supported control systems via open API:
Compass Control®, AMX®,
Control4®, Crestron®, KNX®, RTI®, Savant,
URC®, Leviton®
etc.
- Key Digital® App Ready: Can
be controlled over TCP/IP
via Key Digital® iOS App
- I2C Communication: EDID and HDCP
authentication to Display
and Source
- Data Stream Bandwidth: <
900Mbps
- Latency: <40ms at 4K. Less at
lower resolution.
