BZBGEAR BG-EXH-150C 4K UHD HDMI HDBaseT Long Range Extender with Bi-directional IR RS-232 and CEC up to 490ft

BZBGEAR
Authorized Dealer
SKU: BG-EXH-150C

Product Questions? Ask Our Experts!
  • $399.00
  • Brand
    BZBGEAR
  • SKU
    BG-EXH-150C
  • Weight
    2.00 lbs
  • Warranty
    3 Years
  • Condition
    New
  • Status
    In Stock


BZBGEAR BG-EXH-150C 4K UHD HDMI HDBaseT Long Range Extender with Bi-directional IR RS-232 and CEC up to 490ft

Warranty! Call Us 888 660 2962
  • Weight
    2 lbs
  • SKU
    BG-EXH-150C
  • Mnf#/Vendor#
    BZBGEAR
You need to extend HDMI signal and looking for reliable futureproof solution packed with all necessary features? Stop right there and search no more because you already found it – BZBGEAR BG-EXH-150C!

You need to extend HDMI signal and looking for reliable futureproof solution packed with all necessary features? Stop right there and search no more because you already found it BZBGEAR BG-EXH-150C!

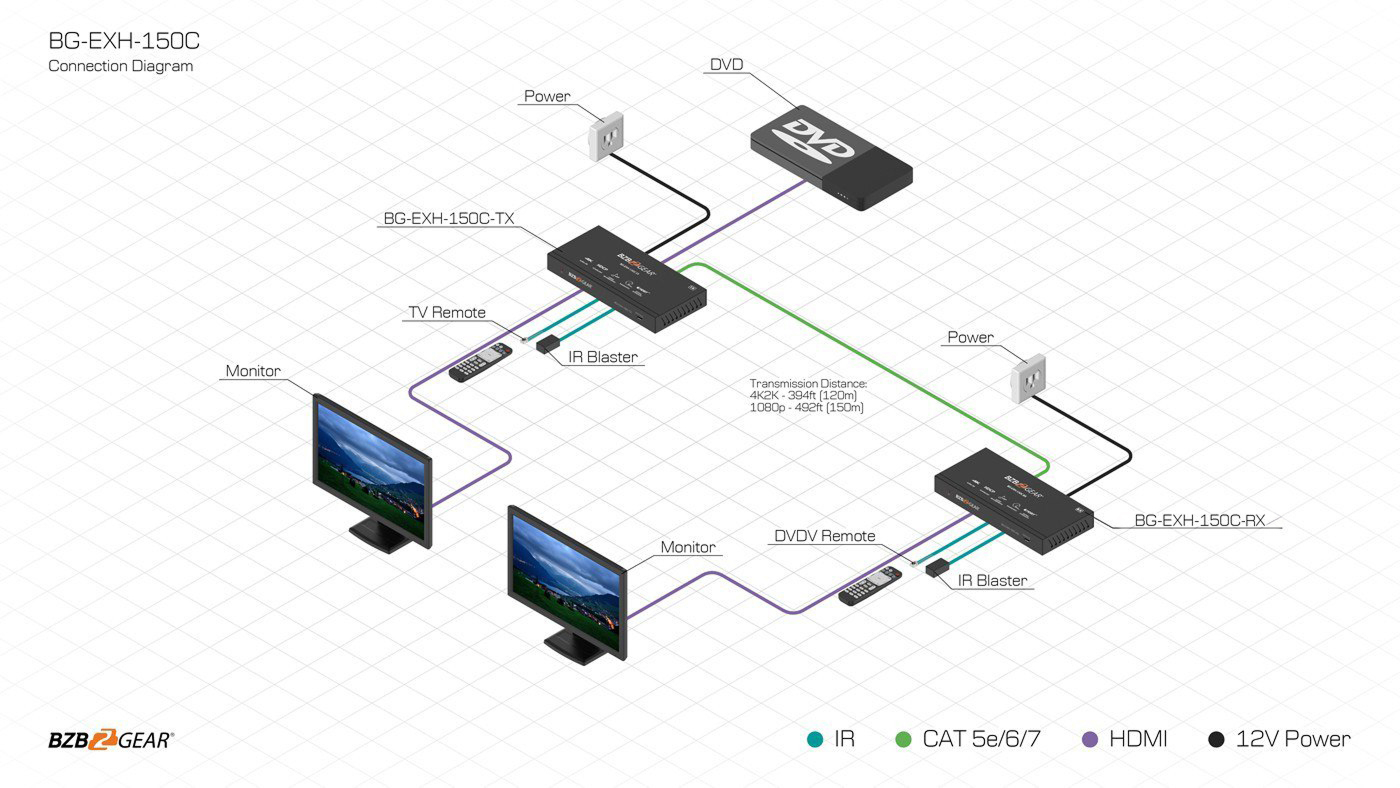

This device with a help of HDBaseT technology will extend HDMI signal for up to 150M (492 ft) with resolutions for up to 4K @ 60Hz using single CAT6 ethernet cable. But probably this is not the only feature you are looking for. So, it can do much more along with HDMI it will extend IR and RS-232 signal, so you can control your TV from the source side (for example, when using 3rd party control system) or you can control the source (like your cable box) from the TV side.

If you need to connect local audio system there is a 3.5mm mini-jack connector on the receiver which provides de-embedding audio from HDMI signal. If you need to duplicate transmitted signal there is a HDMI loop-out connector, which you can use to connect monitor or another device.

Power over category cable adds more convenience for your setup only one side (either transmitter or receiver) needs power adapter to be connected to electrical outlet, and to make it secure it has locking connector.

BZBGEAR BG-EXH-150C also supports many modern video technologies (like HDR, HDR10+, Dolby Vision and HLG) and audio formats as well as digital media protection for up to HDCP 2.2.

Extreme Range:
Transmit 1080p up to 492ft and 4K up to 394ft
HDR Support:
HDR, HDR10+, Dolby Vision, HLG
Multiple Types of Control:
Control devices with bi-directional IR, RS-232 and CEC pass-through
Stunning Image Quality:
Supports resolutions up to 4K @ 60Hz
PoC:
Only one of the units, TX or RX, needs to be plugged into AC power
Audio De-Embedding:
Receiver provides analog audio output for external audio system
  • HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant
  • 18Gbps video bandwidth
  • HDMI loop output on the transmitter
  • With bi-directional IR, RS-232 and CEC pass-through
  • Compact design for easy and flexible installation
  • Durable metal housing


Video



  • Brand
    BZBGEAR
  • SKU
    BG-EXH-150C
  • Weight
    2.00 lbs
  • Warranty
    3 Years
  • Condition
    New
  • Status
    In Stock

  • 1 x 18Gbps HDMI over HDBaseT Extender (Transmitter)
  • 1 x 18Gbps HDMI over HDBaseT Extender (Receiver)
  • 1 x IR Blaster cable (1.5 meters)
  • 1 x 20~60KHz IR Receiver cable (1.5 meters)
  • 4 x Mounting Ear
  • 2 x 3-pin Phoenix connector
  • 1 x 24V/1A Locking Power adapter
  • 1 x User Manual
  • 1 x Quick Start Guide
