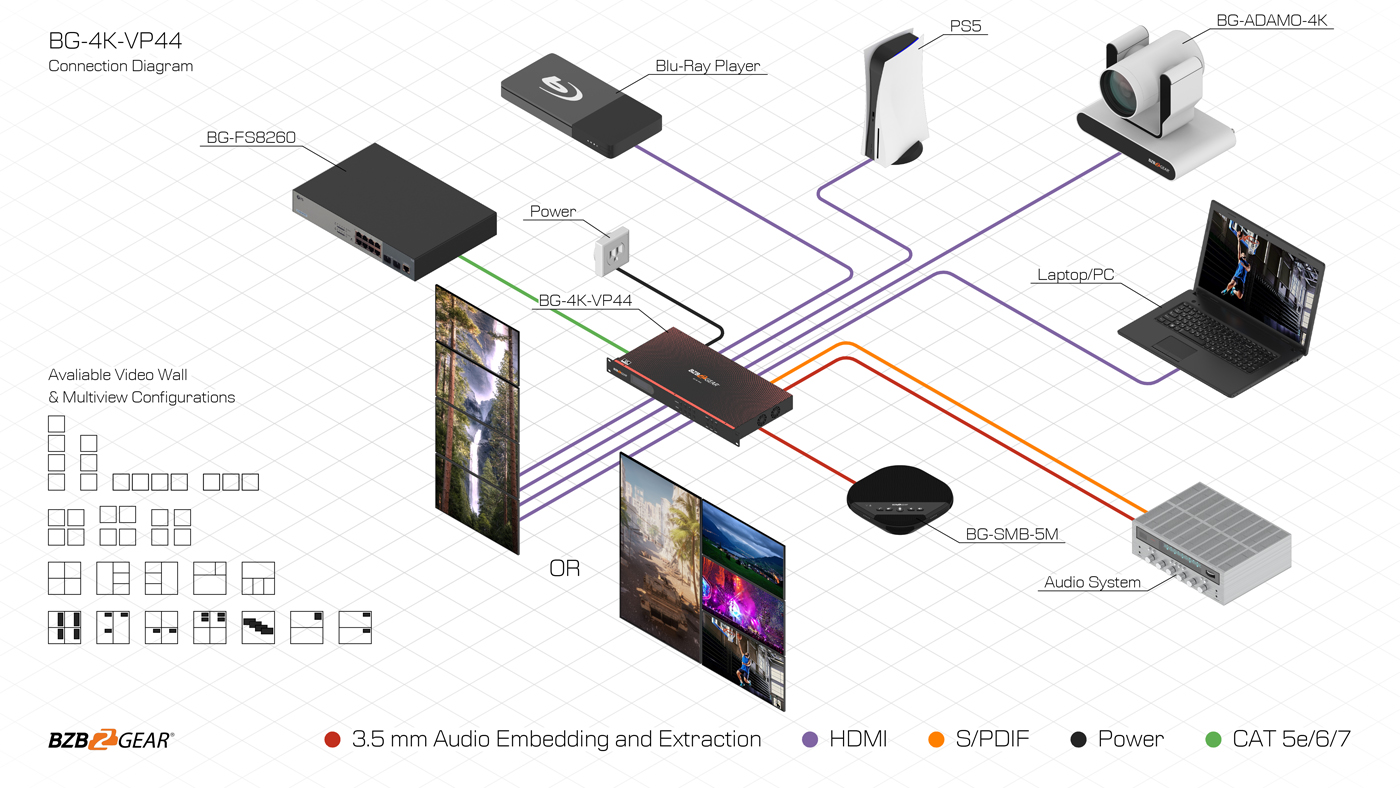

The BG-4K-VP44 is a powerful video processor and supports four HDMI inputs that can be independently routed to HDMI Outputs. This unit can create video walls, act as a multi-viewer and perform matrix functions! The BG-4K-VP44 supports Video Wall configurations of up to 7 different modes with each monitor. It can also display four pictures on the same screen and has multiple split display modes.
Connectivity and Quality
With max resolutions up to 4K@60HZ 4:4:4, the BG-4K-VP44 is capable of producing high-quality imagery with pristine detailing and rich color. All HDMI ports on this unit are HDCP 2.2 compliant. This device also supports analog audio extraction, and audio channels can be switched independently.
Control

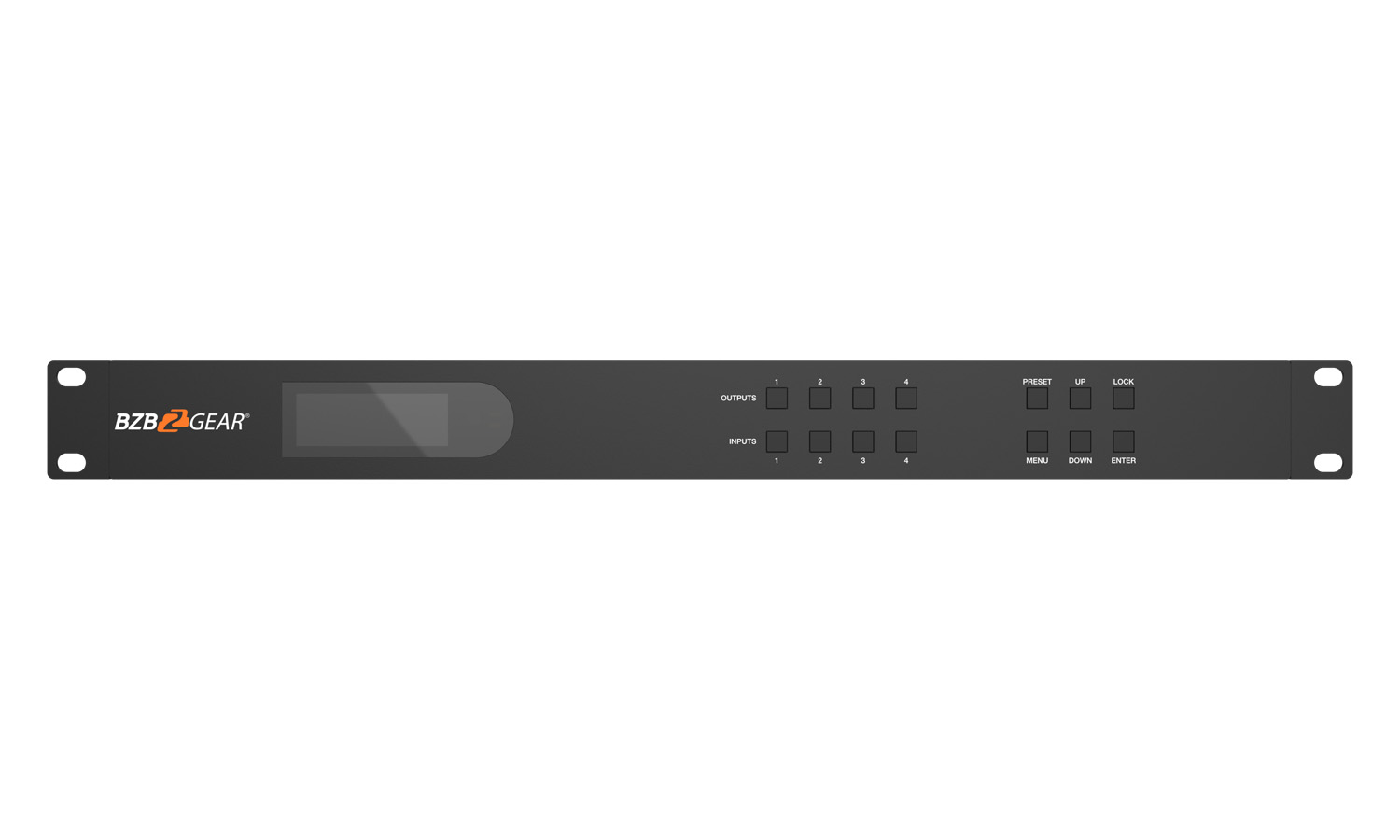

The BG-4K-VP44 offers multiple control methods including front panel controls, IR remote control, RS-232, or IP control. The included IR receiver allows the unit to be controlled with the included remote while located out of sight for a clean installation.
In addition to a full-featured web interface, the BG-4K-VP44 includes control software that can be operated via the RS-232 connection. These interfaces allow users to adjust advanced features like EDID management, mapping, and network settings.
Features:
- 4x4 Matrixing - 4 HDMI Inputs that can be independently routed to 4 HDMI Outputs
- Video Wall - Supports Video Wall up to 7 different modes with each monitor
- Multiview Capabilities - It can display 4 pictures on the same screen and has multiple split display modes
- HDCP Compliant - HDCP 2.2 compliancy ensures copyright protection
- Control Options - Control via panel button, Remote Control, RS232 Control, TCP/IP Control
- 4K@60Hz - Supports resolution up to 4K@60Hz 4:4:4
- No switching delay or picture loss during transitions
- Supports HDMI audio formats including Dolby-5.1, DTS-5.1
- Analog audio extraction and the audio can be independently switching
- Advanced EDID management: Seamless scaling for the best results
