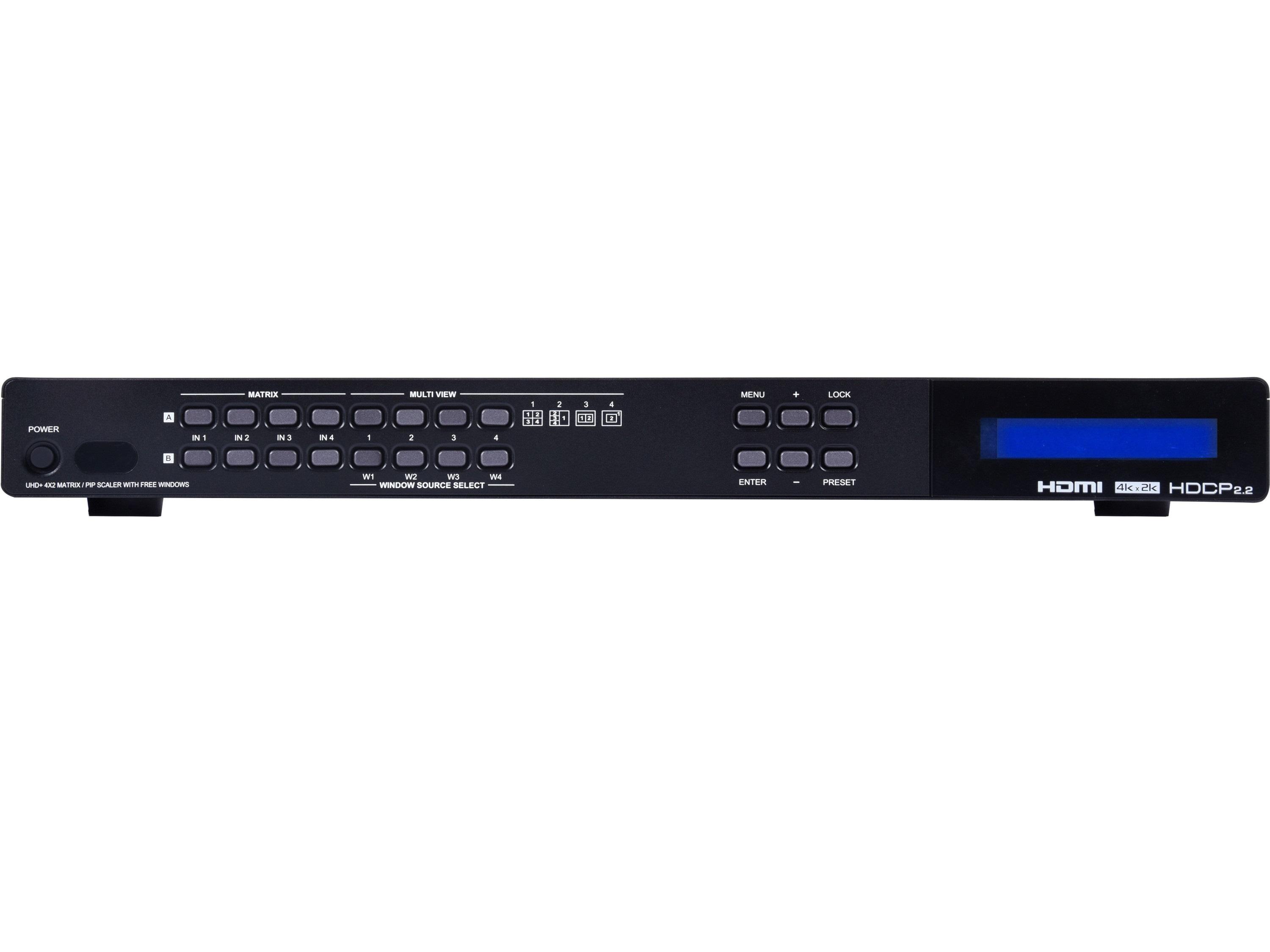

A-NeuVideo ANI-42HPIP 4K/60Hz UHD 4x2 HDMI Seamless Switching Multiviewer

A-NeuVideo
Authorized Dealer
SKU: ANI-42HPIP

Product Questions? Ask Our Experts!
Market price: $1395.00,
Instant savings: $195.00
  • $1200.00
  • Brand
    A-NeuVideo
  • SKU
    ANI-42HPIP
  • Weight
    8.00 lbs
  • Warranty
    3 Years
  • Condition
    New
  • Status
    Backordered


  • Business price:

A-NeuVideo ANI-42HPIP 4K/60Hz UHD 4x2 HDMI Seamless Switching Multiviewer

Warranty! Call Us 888 660 2962
  • Weight
    8 lbs
  • SKU
    ANI-42HPIP
  • Mnf#/Vendor#
    A-NeuVideo
The ANI-42HPIP 4x2 Multiviewer is a high performance HDMI switch with integrated scaling and multi-windowing technology. It is an ideal solution for monitoring or displaying multiple sources simultaneously for use in control rooms, conference rooms or classrooms.

The ANI-42HPIP 4x2 Multiviewer is a high performance HDMI switch with integrated scaling and multi-windowing technology. It is an ideal solution for monitoring or displaying multiple sources simultaneously for use in control rooms, conference rooms or classrooms. Video resolutions up to 4K@60Hz and LPCM audio up to 7.1 channels at 192kHz are supported on both input and output and this unit is fully compatible with the HDCP 1.x and 2.2 standards.

Any of (4) different HDMI sources may be displayed individually, full screen, or they can be displayed using a variety of multi-window modes including quad view and PiP with the output being sent to (2) mirrored HDMI outputs (4K@50/60Hz output supports quad view and full screen only). Management of input/window routing, position and sizing can be controlled easily by use of the front panel controls as well as by WebGUI, RS-232, Telnet and IR remote control options. This product has a 3 year warranty.

Features:

  • HDMI inputs and outputs with 18Gbps (600MHz) 4K UHD support
  • DVI 1.0 compatible with the use of an HDMI-DVI adaptor
  • HDCP 1.x and 2.2 compliant
  • Supports HD resolutions up to 4K@60Hz (4:4:4, 8-bit)
  • (4) HDMI inputs and (2) mirrored HDMI outputs
  • Seamless switching (no loss of sync to display) when switching sources in both full screen and multi-window modes
  • Supports PiP (Picture-in-Picture), side by side, 3+1 quad view, and 2x2 quad view display options with independent audio source selection
  • Note: 4K@50/60Hz output supports 2x2 Quad View only and is limited to 1080p/4K sources.
  • Supports the ability to store a multi-window arrangement as a preset that can be recalled later
  • Each window can have a border with a selectable color
  • Uploadable and freely positioned graphic logo support
  • Note: The logo and border features are not available when the output is set to 4K@50/60Hz.
  • Supports easy adjustment of window size, position and settings in the PiP windowing mode via the WebGUI
  • Matrix mode supports input and output resolutions up to 1080p@60Hz with a single shared audio source (Outputs are mirrored at higher resolutions)
  • Controllable via front panel buttons, WebGUI, Telnet, RS-232 and IR remote
  • Brand
    A-NeuVideo
  • SKU
    ANI-42HPIP
  • Weight
    8.00 lbs
  • Warranty
    3 Years
  • Condition
    New
  • Status
    Backordered

  • ANI-42HPIP 4x2 HDMI Multiviewer
  • 12V/3A DC Power Adapter
  • (2) 5-pin Terminal Block
  • Remote Control (ANI-180)
  • Rackmount Ears (Set of 2)
  • Users Guide
