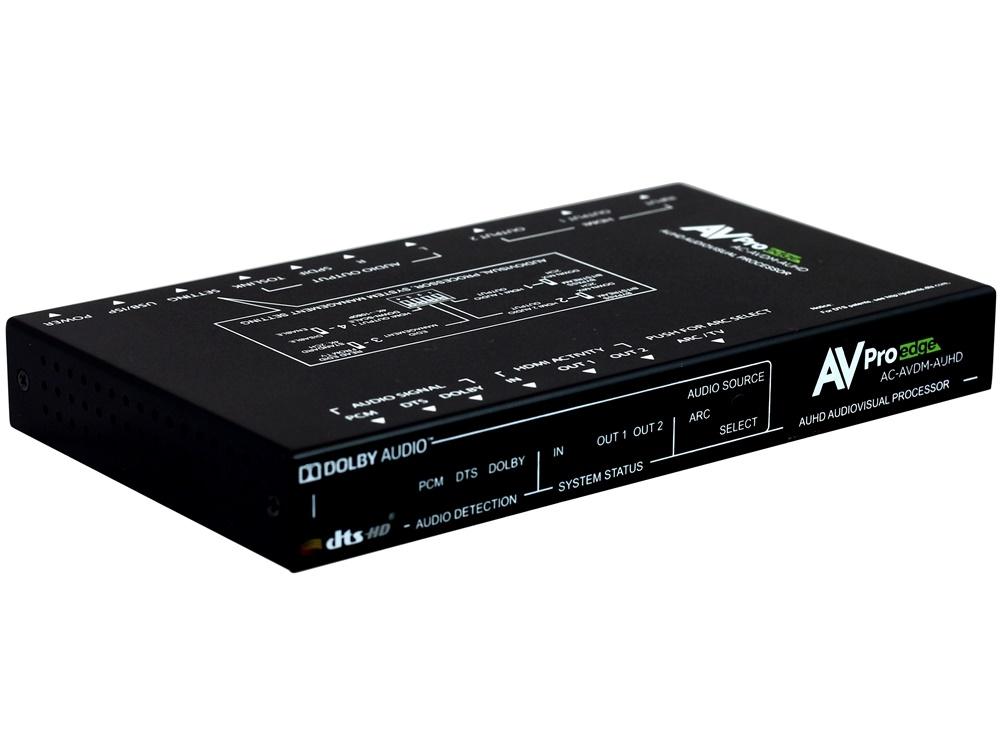

This excellent 4K UHD HDMI with Dolby Audio™ and DTS-
HD®Stereo Audio Decoder bolsters the transmission of high
data transfer capacity (18Gbps) video through HDMI and
permits the compatible audio transmission to be
effortlessly extricated and split to both advanced and
simple sound yields, giving top-notch sound and video
This unit can interpret standard Dolby Audio, and DTS-
HDdesigns up to 7.1 and yield the sound as stereo (LPCM
2.0) over HDMI, S/PDIF (optical and coaxial) and in
addition simple RCA associations. It is likewise ready to
oversee Dolby Atmos signals by extricating 7.1 channels
from Atmos and downmixing that sound. It can likewise
bolster the go through of HD and standard bitstream designs
and in addition LPCM 7.1 with sound examining rates up to
192 kHz if necessary.
On the off chance that the associated showcase
underpinsARC (Audio Return Channel), and has it empowered,
at that point this unit can remove the ARC sound and
produce it using all accessible sound outputs. Both the
input and yield HDMI ports bolster 4K UHD resolutions up to
4K@60Hz (YUV 4:4:4, 8-bit).
Worked in EDID administration bolster permits the client
toselect from different EDIDs and, with the utilization of
discretionary PC programming, to alter, transfer and
download EDID documents.
- HDMI input and output with 18Gbps (600MHz) 4K UHD
- DVI 1.0 compliant with the use of an HDMI-DVI adaptor
- HDCP 1.4 and 2.2 compliant
- Supports HD resolutions up to 3840x2160@60 Hz (YUV
4:4:4, 8-bit) & 4096x2160@60 Hz (YUV 4:4:4, 8-bit)
- Supports 48-bit Deep Color up to 1080p60
- Supports pass-through of LPCM 7.1, bitstream and HD
bitstream audio formats over HDMI
- Embedded Dolby Digital Decoder technology
- Embedded DTS 2.0 + Digital Out Decoder technology
- Integrated digital interpolation filter and Digital-to-
Analog Converter (DAC)
- Supports LPCM sampling rates up to 96kHz.
- Supports Dolby Digital sampling rates up to 48kHz.
- Supports DTS sampling rates up to 96kHz.
- Simultaneous audio output via HDMI, analog stereo,
Coaxial and Optical.
- Supports coaxial and optical audio sampling rates up to
- Support extracting HDMI audio signal from HDTV’s
- Provides EDID management with EDID bypass and 1 user
- PC based EDID management tool support
- Supports RS-232 style control via a Virtual COM port
